Dynamode 10/100/1000Mbps Gigabit Ethernet PCI Bus Adapter
Dynamode 10/100/1000Mbps Gigabit Ethernet PCI Bus Adapter Dynamode 10/100/1000Mbps Gigabit Ethernet PCI Bus Adapter

Dynamode 10/100/1000Mbps Gigabit Ethernet PCI Bus Adapter

10/100/1000Mbps Gigabit Ethernet PCI Bus Adapter

NC1000TX-G

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Need more power for your Network?

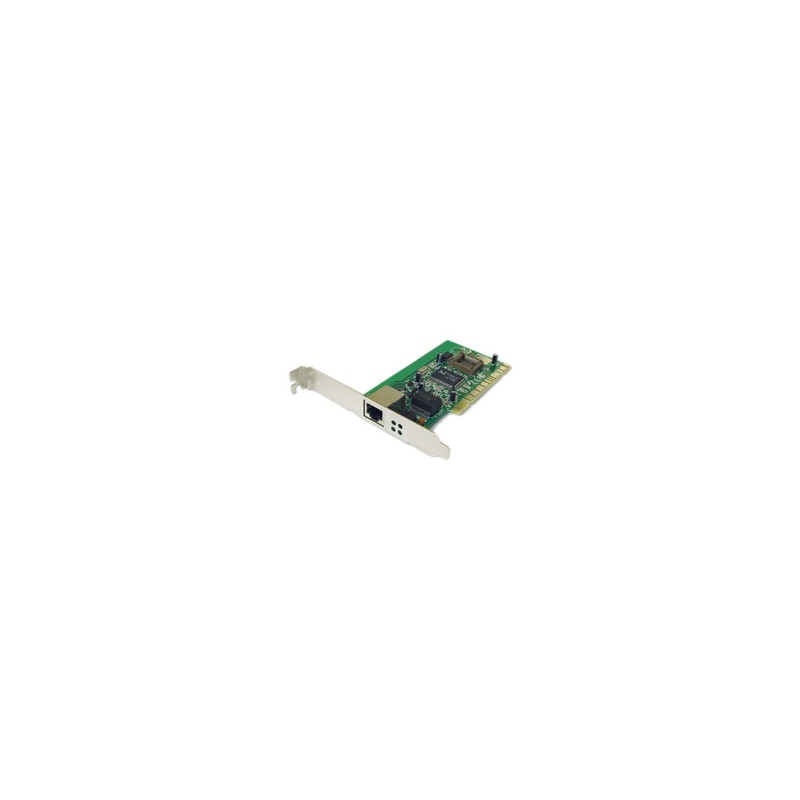

The new NC1000TX-G from Dynamode is probably the most cost effective Gigabit Network cards on the market today. Featuring very high bandwidth throughput and low CPU overhead for efficient data transfer right up to 1000Mbps (Gigabit) speeds using a standard 32-bit PCI bus.



With full backward compatibility for both 10Mbps and 100Mbps complete with Full and Half Duplex flow control. Fully Plug n Play for the most popular Operating Systems.



FEATURES

-Support IEEE 802.3, 802.3u, and 802.3ab standards

-IEEE 802.3x Full-Duplex Flow Control support.

-IEEE 802.1p Layer 2 priority queuing support.

-IEEE 802.1q Virtual LAN (VLAN) Tag and Jumbo Frame support.

-PCI v2.2 32 bit, 33/66 MHz Bus compliant.

-Auto-Negotiation support for Auto-Detect 10/100/1000Mbps data rate and -Full/Half-Duplex operation mode.

-Automatic crossover support for crossover or regular cable.

-Wake-on-LAN and remote Wake-up support.
Connectivity technologyWired
Host interfacePCI
Operating temperature (T-T)0 - 55 °C

NC1000TX-G.pdf

Dynamode 10/100/1000Mbps Gigabit Ethernet PCI Bus Adapter Data Sheet

Download (68.16k)
