Tripp Lite SmartOnline 208/230V 3kVA 2.7kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Network Card Slot, LCD, USB, DB9,

Tripp Lite SmartOnline 208/230V 3kVA 2.7kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Network Card Slot, LCD, USB, DB9,

SmartOnline 208/230V 3kVA 2.7kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Network Card Slot, LCD, USB, DB9, ENERGY STAR

Reference: SUINT3000LCD2U

Out of Stock

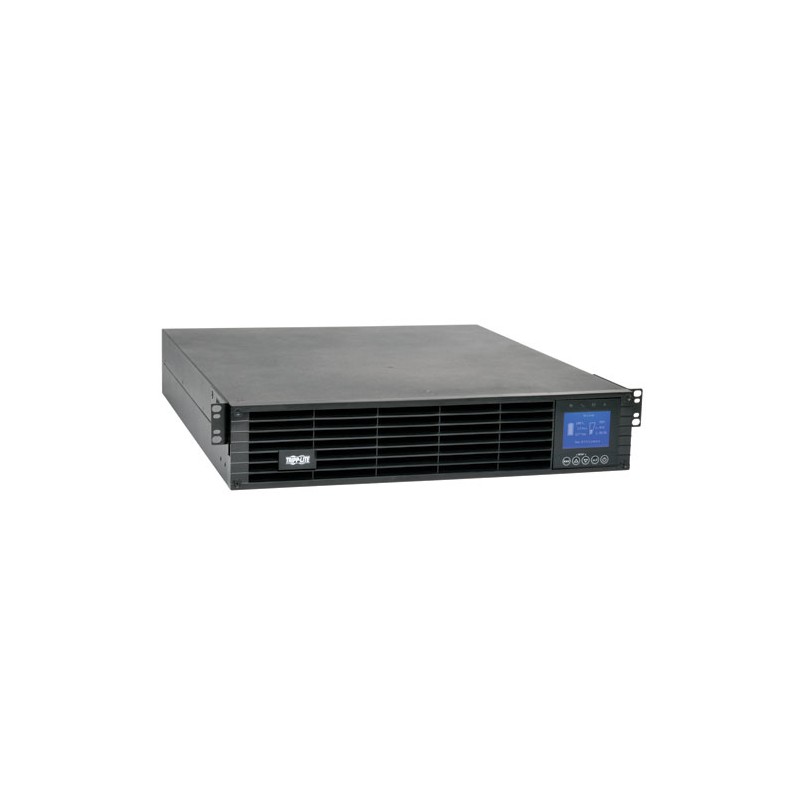

The SUINT3000LCD2U SmartOnline® 3000VA/2700W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options.

In case of AC power outage, the internal batteries support 13.5 minutes of runtime at half load and five minutes at full load. Extended runtime is possible with optional external battery packs. “Smart” battery packs, such as Tripp Lite’s BP72V18-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.

Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power

strategies to reflect your protection priorities, whether it’s precise power

quality for sensitive systems or the highest possible electrical efficiency,

all while ensuring 100% uptime for your systems. This UPS is ENERGY STAR qualified to save you money, save energy and protect the environment by meeting strict efficiency guidelines set by the U.S. Environmental Protection Agency.

Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Tested to international and North American CE, IEC62040-1: 2008, UL 1778, CSA, SASO and EAC standards for applications worldwide. Adding an optional network management card, such as Tripp Lite's SNMPWEBCARD network interface, permits remote management of the UPS, including reboots and activity logs.

- Zero transfer time suitable for advanced network applications

- 2% output voltage regulation in online and battery modes

- Selectable 200/208/220/230/240V output voltage

- Features 2 C19 and 8 C13 outlets

- Meets strict ENERGY STAR efficiency guidelines

- SUINT3000LCD2U SmartOnline 3000VA/2700W On-Line Double-Conversion UPS

- 4-post rack-mount installation kit

- USB cable

- RS-232 cable

- C19-to-C20 power cable

- (2) C13-to-C14 power cables

- Owner’s manual

- Converts AC input to DC power, then DC to fully regulated sine wave AC output

- +/-2% voltage regulation in online and battery modes

- Selectable 200/208/220/230/240V output voltage

- 3000VA/2700W capacity

- 2 C19 and 8 C13 outlets

- 570-joule surge suppression rating

- Supports tower installation with 2-9USTAND accessory

- Interactive Front-Panel LCD reports detailed status information, including load and battery levels

- Offers advanced configuration options, including output voltage and power strategies

- Auto Adaptive enables high efficiency and high-quality operation as necessary for ideal equipment protection

- Max Efficiency favors economy operation with high 95% efficiency

- Max Quality favors on-line, double-conversion mode, maintaining +/-2% output voltage regulation and zero transfer time

- Frequency Regulation and Frequency Conversion enable +/-0.05 Hz output regulation for selected frequency (50/60 Hz)

- Supports half load (1350W) for 13.5 min. and full load (2700W) for 5 min.

- Add external battery packs for extra runtime

- “Smart” battery packs, such as Tripp Lite’s BP72V18-2US, are automatically sensed and configured during replacement

- Full 2700W capacity available with and without external battery packs

- Battery independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries

Highly Customizable

- Customize communications and behavior to integrate with device makers’ specific needs

- Selectable auto-restart from 0 to 60 sec. after AC power is restored

- Selectable minimum battery charge level before auto-restart

- Schedule system reboot if USB signal from connected device is lost

- Set overload thresholds and low battery levels for alert and shutdown

- Remote on/off (toggle) support via DB9

- ENERGY STAR qualified to save you money, save energy and protect the environment by meeting strict EPA efficiency guidelines

- Tested to international and North American CE, IEC62040-1: 2008, UL 1778, CSA, SASO and EAC standards for applications worldwide

SNMP/Web Capability

- Optional Tripp Lite SNMPWEBCARD permits remote management of UPS, including reboots, configuration, updates and activity logs

Certification	CE, ENERGY STAR, FCC Part 15 Category A (EMI), CSA (Canada), EAC, SASO, UL1778
Depth	616 mm
Display	LCD
Form factor	Rackmount/Tower
Height	88 mm
Operating temperature (T-T)	0 - 40 °C
Weight	31170 g
Width	438 mm

SUINT3000LCD2U.pdf

Tripp Lite SmartOnline 208/230V 3kVA 2.7kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Network Card Slot, LCD, USB, DB9, Data Sheet

Download (514.81k)
