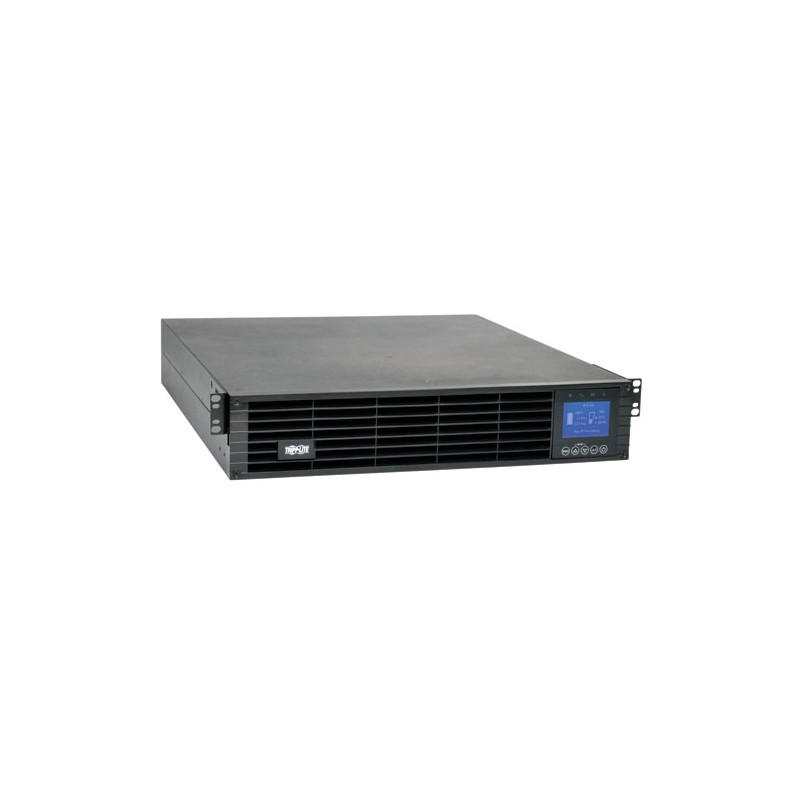

SmartOnline 208/230V 2.2kVA 1.98kW Double-Conversion UPS, 2U Rack-Mount, Extended Run, Network Card Options, LCD, USB, DB9, ENERGY STAR

SUINT2200LCD2U

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The SUINT2200LCD2U SmartOnline® 2200VA/1980W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. ENERGY STAR certification saves you money by meeting strict EPA guidelines. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options.



In case of AC power outage, the internal batteries support 11.7 minutes of runtime at half load and 4.3 minutes at full load. Extended runtime is possible with optional external battery packs. “Smart” battery packs, such as Tripp Lite’s BP48V27-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.



Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems.



Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite SNMPWEBCARD accessory card permits remote management of the UPS, including reboots and activity logs.

- Zero transfer time suitable for advanced network applications

- 2% output voltage regulation in online and battery modes

- Selectable 200/208/220/230/240V output voltage

- Meets strict ENERGY STAR efficiency guidelines

- 11.7 min. runtime at half load; 4.3 min. at full load



- SUINT2200LCD2U SmartOnline 2200VA/1980W On-Line Double-Conversion UPS

- 4-post rack-mount installation kit

- USB cable

- RS-232 cable

- C19-to-C20 power cable

- (2) C13-to-C14 power cables

- Owner’s manual



- Converts AC input to DC power, then DC to fully regulated sine wave AC output

- +/-2% voltage regulation in online and battery modes

- Selectable 200/208/220/230/240V output voltage

- 2200VA/1980W capacity

- 1 C19 and 8 C13 outlets

- 936-joule surge suppression rating

Interactive Front-Panel LCD

- Reports detailed status information, including load and battery levels

- Offers advanced configuration options, including output voltage and power strategies

- Auto Adaptive enables high efficiency and high-quality operation as necessary for ideal equipment protection

- Max Efficiency favors economy operation with high 95% efficiency

- Max Quality favors on-line double-conversion mode, maintaining +/-2% output voltage regulation and zero transfer time

- Frequency Regulation and Frequency Conversion enable +/-0.05 Hz output regulation for selected frequency (50/60 Hz)

- Supports half load for 11.7 min. and full load for 4.3 min.

- Add external battery packs for extra runtime

- “Smart” battery packs, such as Tripp Lite’s BP48V27-2US, are automatically sensed and configured during replacement

- Full capacity available with and without external battery packs

- Battery-independent restart ensures automatic power-up after lengthy power outages

Highly Customizable

- Customize communications and behavior to integrate with device makers’ specific needs

- Selectable auto-restart from 0 to 60 sec. after AC power is restored

- Selectable minimum battery charge level before auto-restart

- Schedule system reboot if USB signal from connected device is lost

- Set overload thresholds and low battery levels for alert and shutdown

- Remote on/off support via DB9

ENERGY STAR Certification

- Saves money and energy and protects environment by meeting strict EPA efficiency guidelines

SNMP/Web Capability

- Optional Tripp Lite network management card options, such as Tripp Lite's SNMPWEBCARD network interface permits remote management of UPS, including reboots, configuration, updates and activity logs
CertificationCE, EAC, SASO, UL1778
Depth496 mm
DisplayLCD
Form factorRackmount
Height88 mm
MaterialMetal
Operating temperature (T-T)0 - 40 °C
Weight23110 g
Width438 mm
