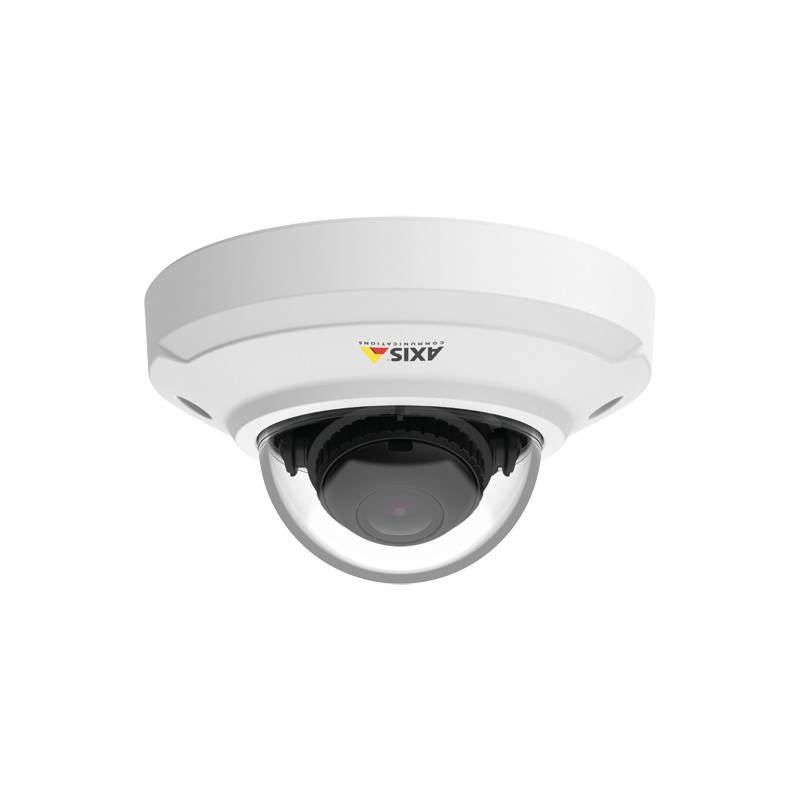

Axis M3046-V
Axis M3046-V Axis M3046-V Axis M3046-V Axis M3046-V

Axis M3046-V

1/3” RGB CMOS, 4 MP, WDR, 1.8 mm, F 2.2, H.264, 25/30 fps, PTZ, 512 MB RAM, 256 MB Flash, RJ-45, HDMI D, PoE, 56 x 101 mm, 180 g

01116-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- Quad HD /4 MP video quality

- Wide Dynamic Range (WDR) for good detail in bright and dark areas

- Axis’ Zipstream technology – saves bandwidth without sacrificing quality

- HDMI output for live streaming to a public monitor

- Digital PTZ and multi-view streaming

- Ultra-compact, discreet design and cost-effective installation

- Supports intelligent analytics



Quad HD / 4 MP, AXIS M3046-V provides exceptional video quality at an affordable price. AXIS M3046-V is perfect for stores, hotels, schools, banks and offices. And it features an HDMI output for live streaming to a public monitor.



Axis quality at an affordable price

AXIS M3046-V gives you sharp Quad HD video quality. It provides a horizontal field of view of 128°. And it comes with Wide Dynamic Range (WDR) technology for good detail even when light levels vary.



Sharp images. Low bandwidth.

Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste.



See the big picture – and the details – with a single camera

Thanks to digital pan/tilt/zoom (PTZ) capabilities and multi-view streaming, AXIS M3046-V lets you view separate video streams of zoomed-in sections of an image at the same time as you view the full overview image. This can be done with a single camera, which keeps installation and maintenance time and costs low, plus minimizes bandwidth and storage needs. AXIS M3046-V can also be used as an alternative to a camera with varifocal lens – its 4MP resolution and digital PTZ capability enable sharp, cropped out views in HDTV 1080p, for example, with a horizontal field of view between 95° and 128°.



Live streaming to a public monitor

AXIS M3046-V features an HDMI output that lets you connect your network cameras to a public monitor to show you have video surveillance in place.



Fits in your hand – fits in anywhere

Small and compact, AXIS M3046-V can be mounted on walls or ceiling as you prefer. And you can easily repaint it to blend in with any environment. A black casing is also available as an accessory.



Installation that’s as easy as 1, 2, 3

To keep implementation costs low, AXIS M3046-V is designed for fast and easy installation. No focusing is required because it comes factory focused. And with its 3-axis camera-angle adjustment, it can be easily leveled and directed in any direction. AXIS M3046-V is also vandal and dust resistant for optimal performance and minimal downtime.
Certification55032 B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A/B,\nICES-003 B, VCCI B, RCM AS/NZS CISPR 22 B, KCC KN32 B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 IK08
Connectivity technologyWired
Ethernet LANYes
Form factordome
Frame rate30 fps
Height56 mm
Housing materialAcrylonitrile butadiene styrene (ABS),Polycarbonate
HTTPS encryptionYes
International Protection (IP) codeIP42
IP address filteringYes
Maximum resolution2688 x 1520 pixels
Minimum illumination0.3 lx
Mounting typeCeiling
Operating temperature (T-T)0 - 40 °C
Optical sensor size1/3 "
Placement supportedIndoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4b
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal128 °
Viewing angle, vertical72 °
Weight180 g
Wi-FiNo
Wide Dynamic Range (WDR)Yes
Number of cameras1
Privacy maskingYes

01116-001.pdf

Axis M3046-V Data Sheet

Download (495.78k)
