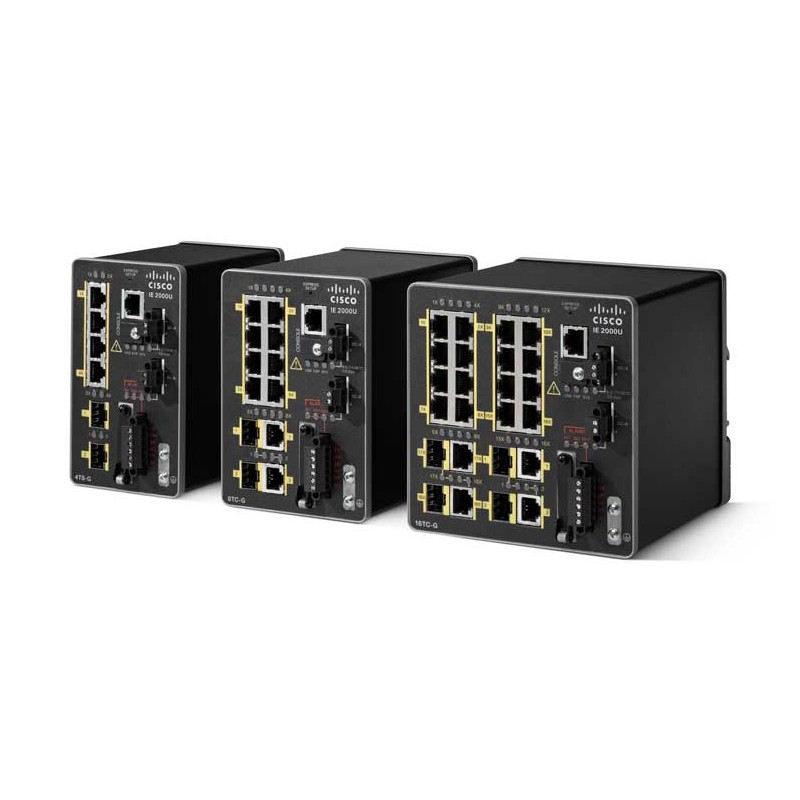

Cisco IE-2000U-16TC-GP
Cisco IE-2000U-16TC-GP Cisco IE-2000U-16TC-GP

Cisco IE-2000U-16TC-GP

16x 10/100, 2x SFP GE w/ IEEE 1588, PoE, 256 MB DRAM, 1 GB SD flash

IE-2000U-16TC-GP

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Cisco Industrial Ethernet (IE) 2000U Series Switch is a rugged, compact, DIN-rail-mountable switch optimized for use in transmission and distribution power substations and distribution generation facilities like wind and solar farms.



Cisco Industrial Ethernet 2000U (IE 2000U) Series Switches work in the harsh environments common in transmission and distribution substations, including small cabinets in space-constrained locations such as pole tops. The Cisco IE 2000U uses Cisco IOS Software, the operating system that powers millions of Cisco switches worldwide.



Primary features include:

- Rugged industrial design and substation compliance (meets IEC 61850-3 and IEEE 1613 standards for utility substation environments)

- Advanced capabilities to support mission-critical substation applications such as supervisory control and data acquisition (SCADA) and IEC 61850 Generic Object-Oriented Substation Events (GOOSE) messaging

- Support for Precision Timing Protocol (PTP) applications based on IEEE 1588 v2 standards



Cisco IE 2000U Series Switches provide:

- Hitless failover protocol support based on the IEC 62439-3 standard (the Parallel Redundancy Protocol and High-Availability Seamless Redundancy)

- Support for the Resilient Ethernet Protocol (REP) and Flex Links for fast reconvergence in ring and hub-and-spoke topologies



SmartPort templates for one-touch global and port-level macros to simplify switch deployments

The IE2000U can be easily managed by Cisco Industrial Network Director, a network management system purpose built for industrial applications that uses the complete capabilities of the Cisco Industrial Ethernet product family to make the network easily accessible to non-IT operations personnel.



Use the rugged Cisco IE 2000U switches along with the CGS 2520 Connected Grid Switches and the Cisco 2000 Series Connected Grid Router
Depth127 mm
Height134 mm
Operating temperature (T-T)-40 - 75 °C
SafetyUL508, CSA C22.2 No. 142, UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1
Weight1970 g
Width130 mm

IE-2000U-16TC-GP.pdf

Cisco IE-2000U-16TC-GP Data Sheet

Download (616.14k)
