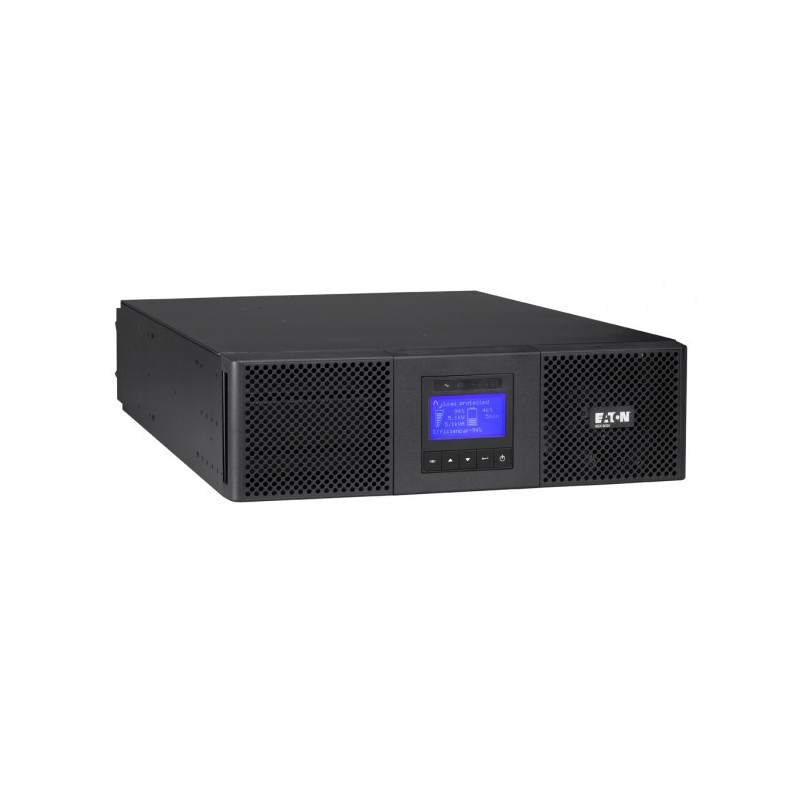

Eaton 9SX 6000i RT3U
6 kVA, 5.4 kW, LCD, Terminal, 8x C13, 2x C19, USB, RS-232, 45 dB, 48 kg
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
9SX6KIRT
Data sheet
- AC outlet types
- C13 coupler,C19 coupler,Terminal
- AC outlets quantity
- 11 AC outlet(s)
- Colour of product
- Black
- Crest factor
- 3:1
- Depth
- 685 mm
- Display
- LCD
- Efficiency
- 98 %
- Energy Star certified
- Yes
- Form factor
- Rackmount/Tower
- Height
- 440 mm
- Input current THD
- 5 %
- Input operation voltage (max)
- 276 V
- Input operation voltage (min)
- 100 V
- Maximum current
- 90 A
- Noise level
- 45 dB
- Operating temperature (T-T)
- 0 - 40 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 200 V
- Output power
- 5400 W
- Output power capacity (VA)
- 6000 VA
- Output voltage THD
- 2 %
- Power plug
- Terminal
- Power supply input frequency
- 40/70 Hz
- Rack capacity
- 3U
- Rack mounting
- 3U
- RS-232 ports
- 1
- Safety
- EN 62040-1, UL 1778, CSA 22.2
- Source data-sheet
- Icecat.biz
- Typical backup time at half load
- 11 min
- USB 2.0 ports quantity
- 1
- Weight
- 48000 g
- Width
- 130 mm
Specific References
- EAN13
- 0743172039354
