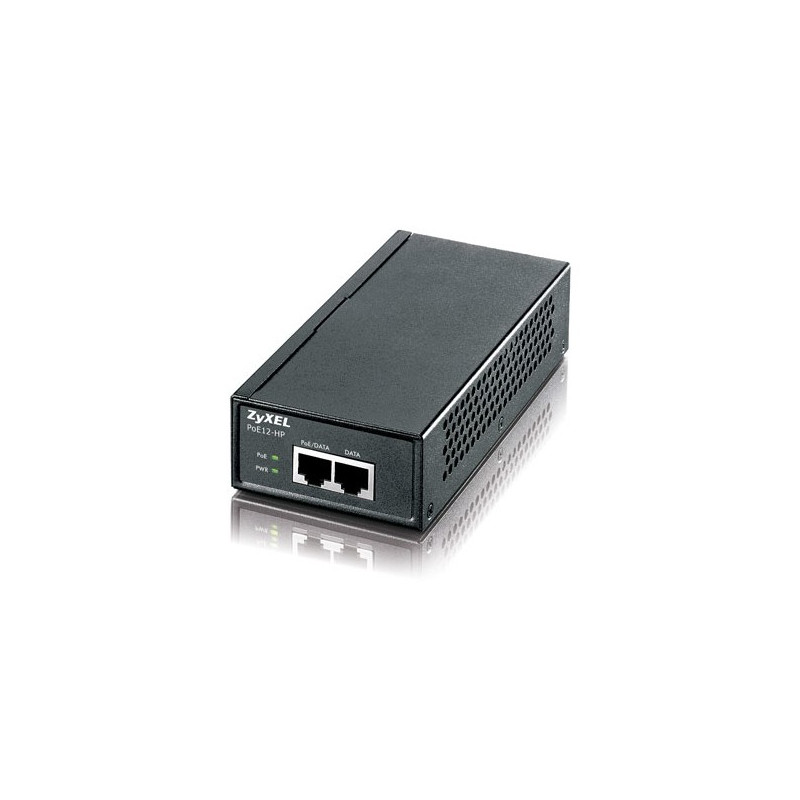

ZyXEL PoE12-HP
Single Port High Power IEEE 802.3at Power-over-Ethernet Injector, 1000Mbps, 30W
The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power demands of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom functions of IP surveillance cameras. The PoE12 Series consists of two models: PoE-12 and PoE12-HP. The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both power and data to other PoE devices via a single CAT-5 Ethernet cable without extra power supply. The PoE-12 enables 100Mbps data transmissions and provides power up to 15.4W, while the PoE12-HP allows data transmitted at 1000Mbps and delivers power up to 30W.
POE12-HP-GB0102F
Data sheet
- Certification
- FCC Part15 (Class B)
CE EMC (Class B) - Ethernet LAN (RJ-45) ports
- 2
- Operating temperature (T-T)
- 0 - 50 °C
- Safety
- EN 60950-1, CSA, EU RoHS
- Weight
- 396 g
Specific References
- EAN13
- 4718937567102
Single Port High Power IEEE 802.3at Power-over-Ethernet Injector, 1000Mbps, 30W
