Axis M3014
M3014, Dome, CMOS, H.264, HDTV, 720p, 1MP
- Ultra-discreet fixed dome design
- HDTV quality
- Multiple H.264 streams
- Easy installation
- Power over Ethernet
- Advanced security and network management
Innovative, unique camera design

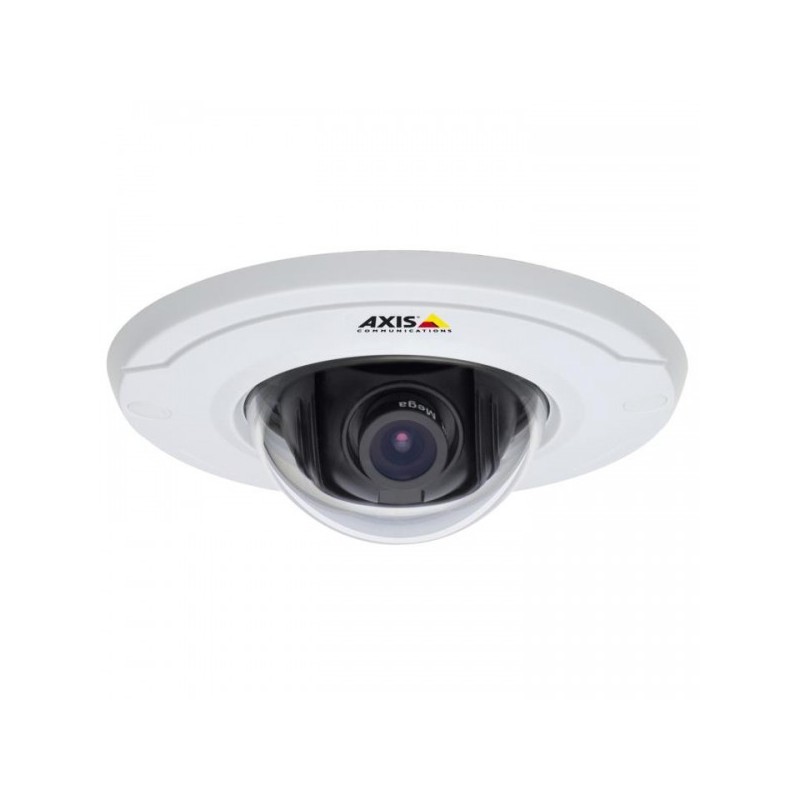

AXIS M3014 Fixed Dome Network Camera is an ultra-compact fixed dome with an innovative and unique camera design. It is specifically developed for recessed mounting in drop ceilings, creating an unmatched discreet solution for network video surveillance – measuring 9 cm (3.6”) in diameter and barely sticking out 3 cm (1.1”) from the ceiling.
AXIS M3014 is a 1 megapixel network camera using progressive scan technology. The camera offers multiple streams that can be individually optimized in H.264 as well as Motion JPEG. The H.264 compression enables optimization for bandwidth and storage efficiency by significantly reducing the bit rate.
- HDTV quality
- Multiple H.264 streams
- Easy installation
- Power over Ethernet
- Advanced security and network management
Innovative, unique camera design
AXIS M3014 Fixed Dome Network Camera is an ultra-compact fixed dome with an innovative and unique camera design. It is specifically developed for recessed mounting in drop ceilings, creating an unmatched discreet solution for network video surveillance – measuring 9 cm (3.6”) in diameter and barely sticking out 3 cm (1.1”) from the ceiling.
AXIS M3014 is a 1 megapixel network camera using progressive scan technology. The camera offers multiple streams that can be individually optimized in H.264 as well as Motion JPEG. The H.264 compression enables optimization for bandwidth and storage efficiency by significantly reducing the bit rate.
0285-001
Data sheet
- Connectivity technology
- Wired
- Form factor
- dome
- Frame rate
- 30 fps
- Height
- 105 mm
- Housing material
- Metal
- Maximum resolution
- 1280 x 800 pixels
- Minimum illumination
- 1 lx
- Mounting type
- Ceiling
- Optical sensor size
- 1/0.157 mm (1/4 ")
- Placement supported
- indoor & outdoor
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Viewing angle, horizontal
- 80 °
- Viewing angle, vertical
- 48 °
- Width
- 91.6 mm
Specific References
- EAN13
- 7331021038059
M3014, Dome, CMOS, H.264, HDTV, 720p, 1MP
