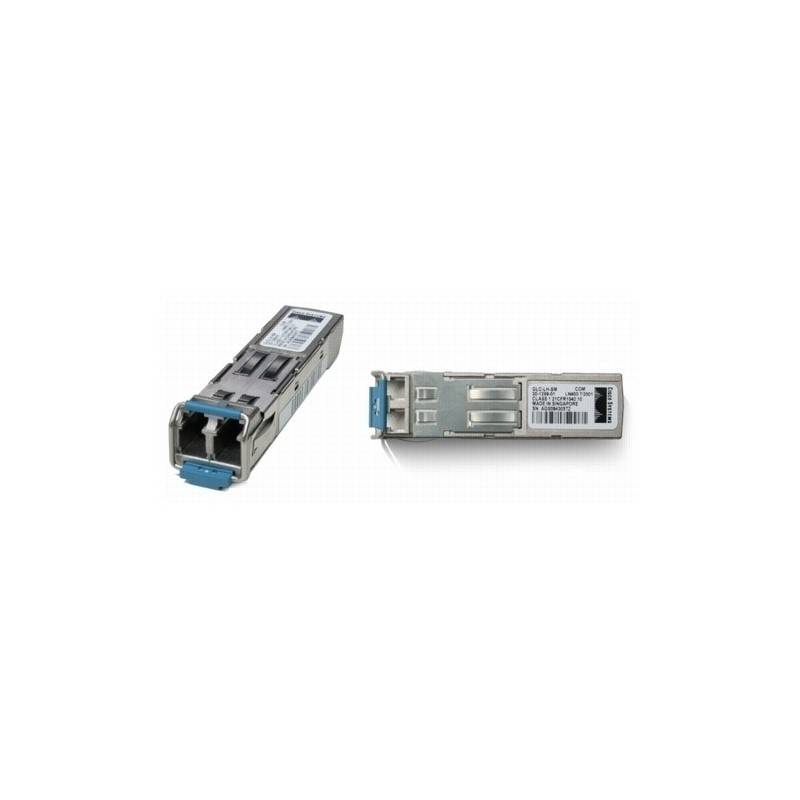

Cisco GLC-SX-MM-RGD
1000BASE-SX SFP Transceiver Module SMF, 850-nm Wavelength, Industrial Temperature Range
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
1000BASE-SX SFP for Multimode Fiber Only
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m.
1000BASE-SX SFP for Multimode Fiber Only
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m.
Data sheet
- Cabling technology
- 1000BASE-SX
- Connectivity technology
- Wired
- Connector(s)
- LC/PC
- Data transfer rate (max)
- 1000 Mbit/s
- Fiber type
- MMF
- Interface
- SFP
- Maximum transfer distance
- 900 m
- Operating temperature (T-T)
- -40 - 85 °C
- Source data-sheet
- Icecat.biz
Specific References
- EAN13
- 0882658074189
