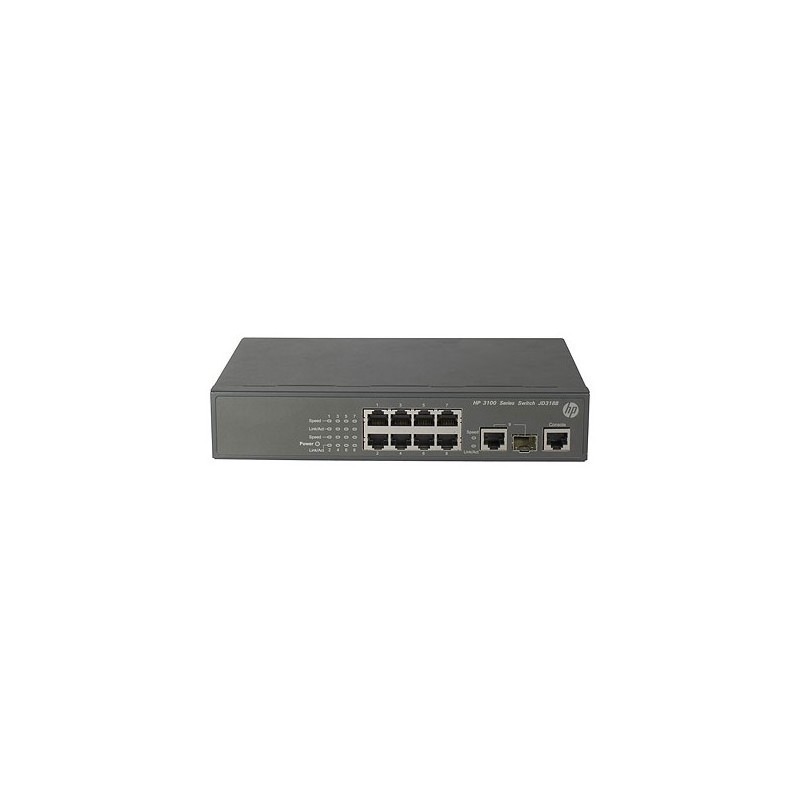

HP 3100-8 v2 EI Switch

Hewlett Packard Enterprise 3100-8 v2 EI

HP 3100-8 v2 EI Switch

JD318B

Stock Due 07-07-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mbps-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher-capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping, and Power over Ethernet (PoE).

Quality of Service (QoS)


• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic



Management


• Friendly port names: allow assignment of descriptive names to ports



Connectivity


• IPv6 (on v2 products): Telnet v6: to allow IPv6 management. DNSv6 Client: for IPv6 host management. SNMPv6: for IPv6 switch management. DHCPv6 Client: for automatic IPv6 address configuration of a switch.



Performance


• Hardware-based wire-speed access control lists (ACLs): feature-rich ACL implementation (TCAM based) helps provide high levels of security and ease of administration without impacting network performance



Resiliency and high availability


• Separate data and control paths: increase security and performance



Layer 2 switching


• PVST+ on v2 products: provides greater interoperability



Layer 3 services


• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet

10G supportNo
Depth160 mm
Form factor1U
Height43.7 mm
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Weight1800 g
Width230.1 mm
