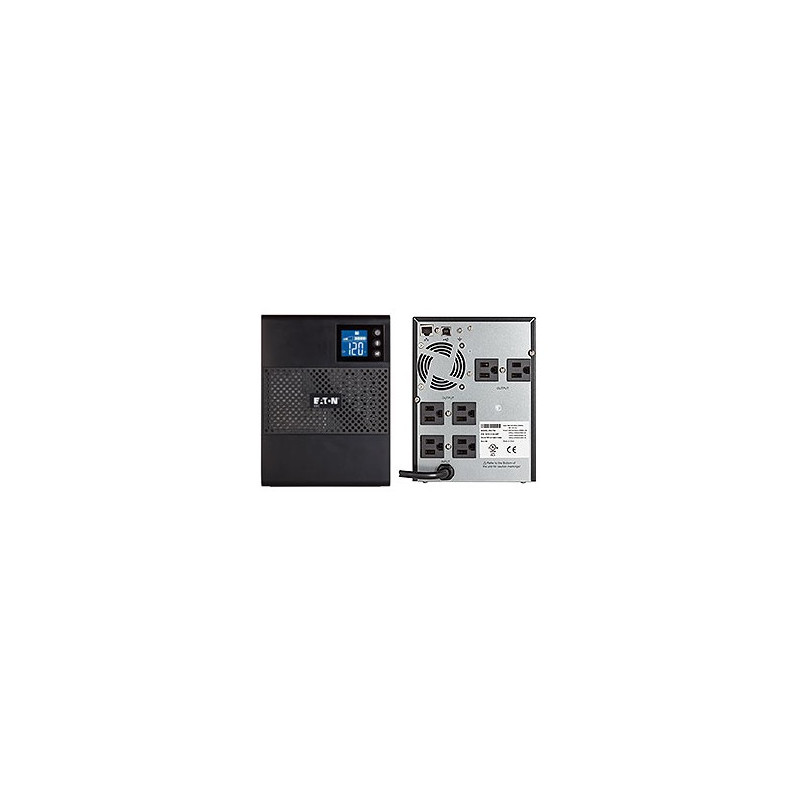

Eaton 5SC750
750VA, 525W, 1 x NEMA 5-15P In, 6 x NEMA 5-15R Out, RS-232, USB, Tower
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
5SC750
Data sheet
- AC outlet types
- NEMA 5–15R
- Battery technology
- Sealed Lead Acid (VRLA)
- Cable length
- 1.8 m
- Certification
- IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
- Colour of product
- Black
- Depth
- 340 mm
- Display
- LCD
- Efficiency
- 94 %
- Input operation voltage (max)
- 144 V
- Input operation voltage (min)
- 96 V
- Noise level
- 97.4 dB
- Nominal input voltage
- 120 V
- Operating relative humidity range
- 0 - 90 %
- Output power
- 525 W
- Output power capacity (VA)
- 750 VA
- Power plug
- NEMA 5-15P
- Power supply input frequency
- 50/60 Hz
- Safety
- CE/cULus/NOM
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- 0 - 40 °C
- Typical backup time at full load
- 5 min
- Typical backup time at half load
- 13 min
- Waveform
- Square
- Weight
- 10.5 kg
- Width
- 993 mm
Specific References
- EAN13
- 0743172045096
