Cisco WS-C2960XR-48FPS-I
Catalyst 2960-XR, 48 x 10/100/1000 Ethernet, 4 x SFP, APM86392 600MHz dual core, DRAM 512MB, Flash 128MB, PoE 740W, IP Lite

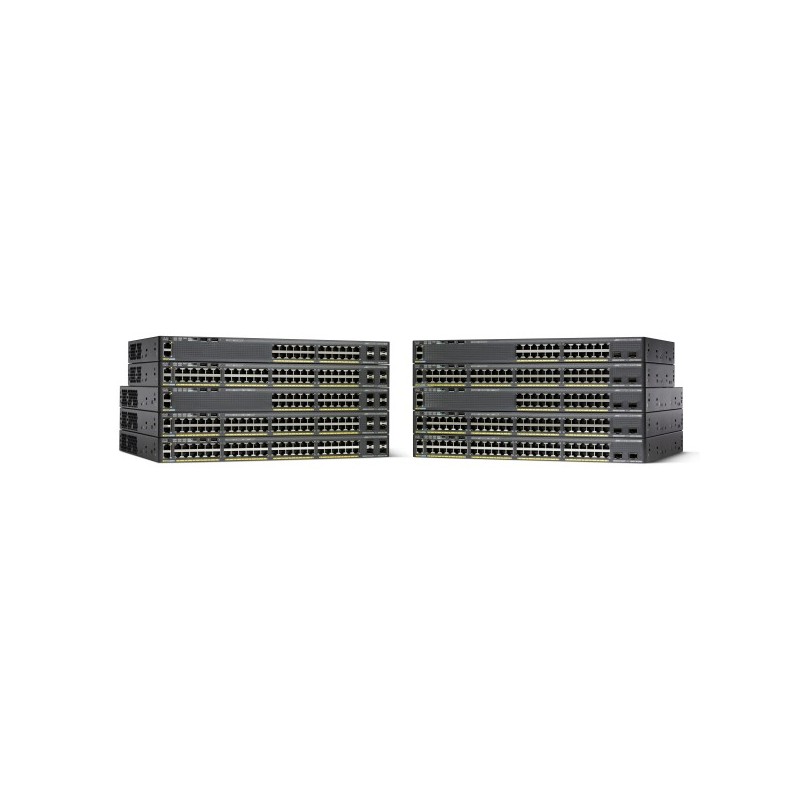

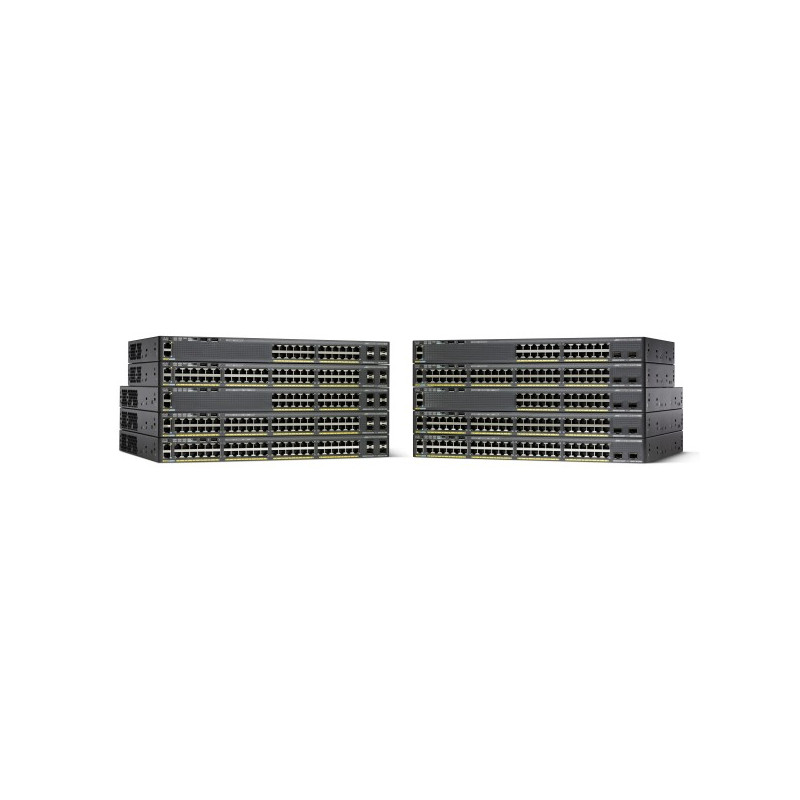

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
WS-C2960XR-48FPS-I
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Built-in processor
- APM86392
- Colour of product
- Black
- Depth
- 408 mm
- DHCP server
- Yes
- Flash memory
- 96 MB
- Height
- 990mm
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Mean time between failures (MTBF)
- 230860 h
- Memory type
- SLC
- Networking standards
- IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Noise level
- 97.4 dB
- Non-operating altitude
- 0 - 4000 m
- Number of VLANs
- 1023
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating relative humidity range
- 10 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 5 - 40 °C
- Output power
- 1025 W
- Power consumption (typical)
- 58.5 W
- Power over Ethernet (PoE) ports quantity
- 96
- Power over Ethernet (PoE) support
- Yes
- Processor clock speed
- 600 MHz
- Safety
- UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
- Storage relative humidity (H-H)
- 10 - 95 %
- Storage relative humidity range
- 10 - 95 %
- Storage temperature (T-T)
- -25 - 70 °C
- Storage temperature range (T-T)
- -25 - 70 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- USB 2.0 ports quantity
- 7
- Weight
- 6700 g
- Width
- 993 mm
Specific References
- EAN13
- 7427457584526
