Cisco SPA-1XOC48POS/RPR
1 port OC48c/STM-16c POS/RPR Shared Port Adapter, Spare

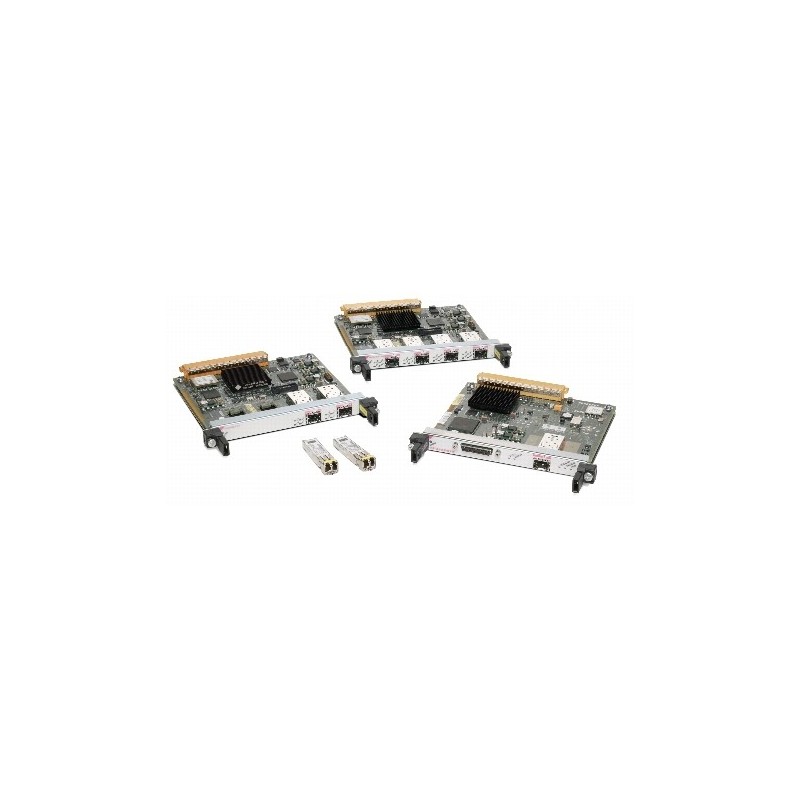

The Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPAs are available on high-end Cisco routing platforms and offers the benefits of network scalability with lower initial costs and easy upgrades. The SPAs continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and leading-edge technology. The SPAs allow different interfaces (POS, ATM, etc.) to be deployed on the same carrier card.
The Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPAs use Small Form-Factor Pluggable (SFP) interfaces. SFP modules are available in short-reach (2 km), intermediate-reach (15 km), and long-reach (80 km) optics.
The Cisco 1-, 2-, and 4-Port OC-48c/STM-16c POS/RPR SPAs use Small Form-Factor Pluggable (SFP) interfaces. SFP modules are available in short-reach (2 km), intermediate-reach (15 km), and long-reach (80 km) optics.
SPA-1XOC48POS/RPR=
Data sheet
- Connectivity technology
- Wired
- Depth
- 184.9 mm
- Ethernet LAN
- No
- Height
- 20.3 mm
- Host interface
- CardBus
- Operating temperature (T-T)
- 0 - 40 °C
- Safety
- UL 60950, CSA 22.2-No.60950, EN60950, IEC 60950 CB Scheme, ACA TS001, AS/NZS 3260, EN60825\IEC60825, 21CFR1040 -FDA1
- Supported network protocols
- HDLC, PPP, RFC 2427, IPv4/IPv6, IEEE 802.17 - Resilient Packet Ring (RPR), IETF 2892 - Spatial Reuse Protocol (SRP)
- Weight
- 340 g
- Width
- 171.5 mm
Specific References
- EAN13
- 0746320924281
1 port OC48c/STM-16c POS/RPR Shared Port Adapter, Spare
