Cisco 8 Port OC-3/STM-1 Spare

Cisco SPA-8XOC3-POS

8-Port OC-3c/STM-1 Packet over Sonet SPA, Spare

SPA-8XOC3-POS=

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Cisco ® I-Flex design combines shared port adapters (SPAs) and SPA interface processors (SIPs), using an extensible design that enables service prioritization for voice, video, and data services. Enterprise and service provider customers can use improved slot economics resulting from modular port adapters are interchangeable across Cisco routing platforms. The I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors, which deliver line-rate performance. I-Flex enhances speed-to-service revenue and provides a rich set of quality-of-service (QoS) features for premium service delivery while effectively reducing the overall cost of ownership. This data sheet contains the specifications for the Cisco 4/8-Port OC-3c/STM-1 Packet over SONET SPAs



The Cisco 4- and 8-Port OC-3 POS SPAs are available on high-end Cisco Systems® routing platforms offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows deployment of different interfaces (Packet over SONET/SDH [POS], ATM, Ethernet, and so on) on the same interface processor.

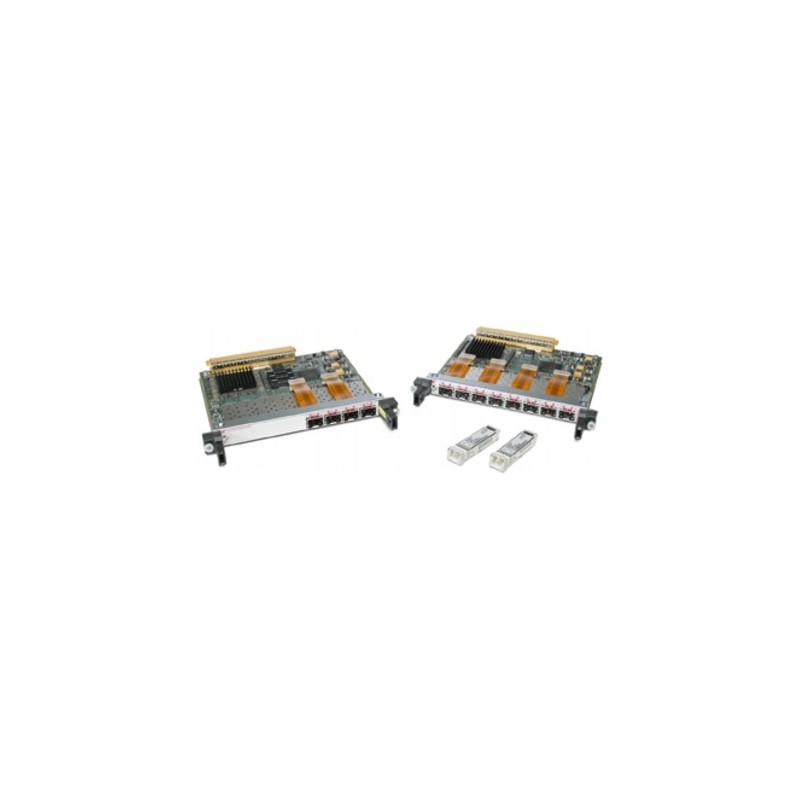

The Cisco 4- and 8-Port OC-3 POS SPAs are available with four or eight Small Form-Factor Pluggable (SFP) interfaces. SFP modules are available in multiple optical reaches from 2 to 80 km.
CertificationEN300 386/EN300 386-2, ETS 300 019, ETS 300 019, ETS 300 019
Connectivity technologyWired
Depth184.9 mm
Ethernet LANNo
Height20.3 mm
Host interfaceCardBus
Operating temperature (T-T)5 - 40 °C
SafetyUL 60950, CSA 22.2-No.60950, EN60950, IEC 60950, ACA TS001, AS/NZS 3260
Weight340 g
Wi-FiNo
Width171.5 mm
