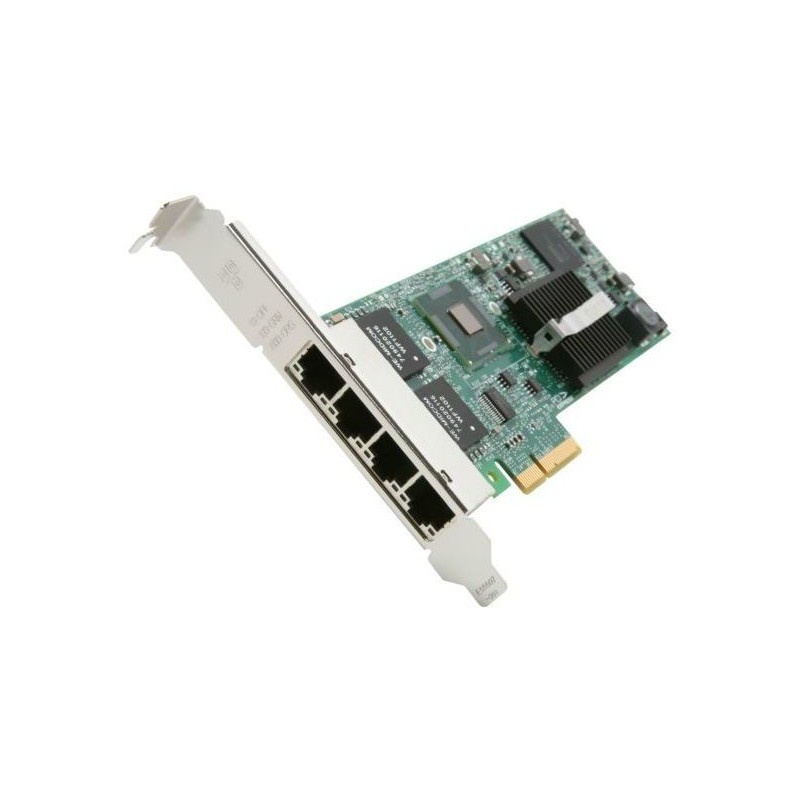

Fujitsu 4x1Gbit Cu Intel I350-T4
4x1Gbit Cu Intel I350-T4 PCIe x4 card
Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
S26361-F4610-L504
Data sheet
- Cabling technology
- 10/100/1000BaseT(X)
- Chipset
- Intel I350-AM4
- Compatibility
- Server
- Connectivity technology
- Wired
- Data transfer rate (max)
- 1000 Mbit/s
- Host interface
- PCI-E
- Interface
- XFP
- Networking standards
- IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 9W
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Supported network protocols
- iSCSI
Specific References
- EAN13
- 4053026551755
4x1Gbit Cu Intel I350-T4 PCIe x4 card
