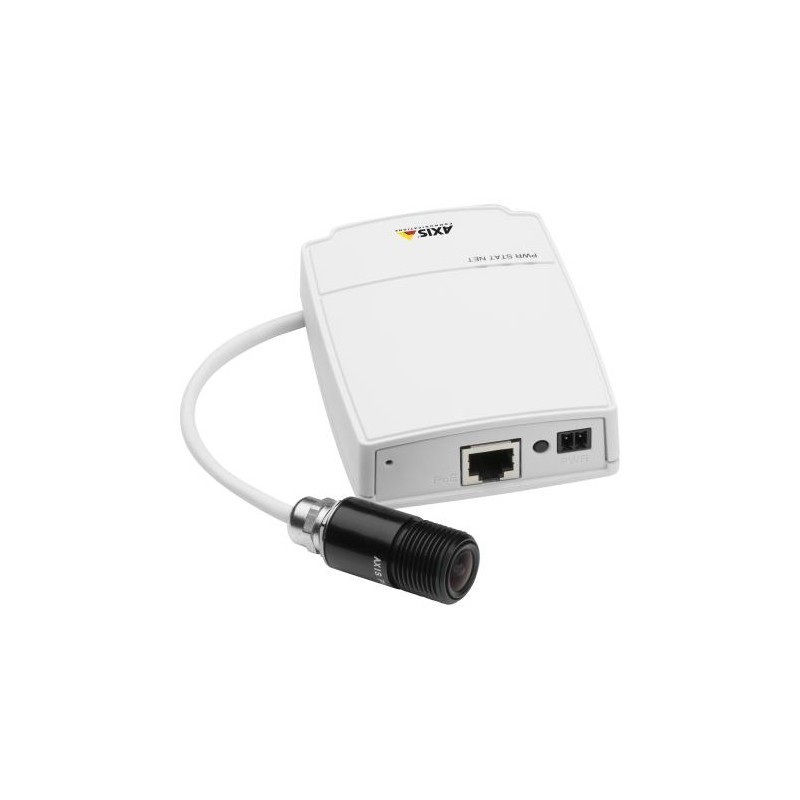

Axis P1214-E
1/4" CMOS, 720p, IP66, 1 - 10000 lx, H.264, 256 MB RAM, 248 g
- IP66-rated sensor unit
- Functional and extremely discreet design
- Easy and flexible installation
- HDTV 720p
- Edge storage
- Multiple H.264 streams
- Power over Ethernet
Unique design concept
The unique form factor and small size of the sensor unit enables flush mounting at places where a concealed application is required. AXIS P1214-E is ideal for compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs.
Outdoor covert installations
The innovative design concept of AXIS P1214-E comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart.
AXIS P1214-E housing
AXIS P1214-E, an IP66-rated model, offers a wide range of mounting options for indoor and outdoor installations. The supplied housing makes the camera suitable for discreet wall or ceiling mount, allowing an overview without being intrusive.
HDTV 720p
AXIS P1214-E Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG.
- Functional and extremely discreet design
- Easy and flexible installation
- HDTV 720p
- Edge storage
- Multiple H.264 streams
- Power over Ethernet
Unique design concept
The unique form factor and small size of the sensor unit enables flush mounting at places where a concealed application is required. AXIS P1214-E is ideal for compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs.
Outdoor covert installations
The innovative design concept of AXIS P1214-E comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart.
AXIS P1214-E housing
AXIS P1214-E, an IP66-rated model, offers a wide range of mounting options for indoor and outdoor installations. The supplied housing makes the camera suitable for discreet wall or ceiling mount, allowing an overview without being intrusive.
HDTV 720p
AXIS P1214-E Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG.
0533-001
Data sheet
- Certification
- EN/IEC 60950-22, IEC 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-78 Class 4K3, IEC 60068-2-14, IEC 60068-2-30
- Connectivity technology
- Wired
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Form factor
- covert
- HTTPS encryption
- Yes
- International Protection (IP) code
- IP66
- IP address filtering
- Yes
- Maximum resolution
- 1280 x 720 pixels
- Minimum illumination
- 1 lx
- Night vision
- No
- Operating temperature (T-T)
- -20 - 50 °C
- Optical sensor size
- 1/4 "
- Placement supported
- Indoor & outdoor
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/ SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Weight
- 248 g
- Wi-Fi
- No
Specific References
- EAN13
- 7331021004030
1/4" CMOS, 720p, IP66, 1 - 10000 lx, H.264, 256 MB RAM, 248 g
