Axis M5014-V

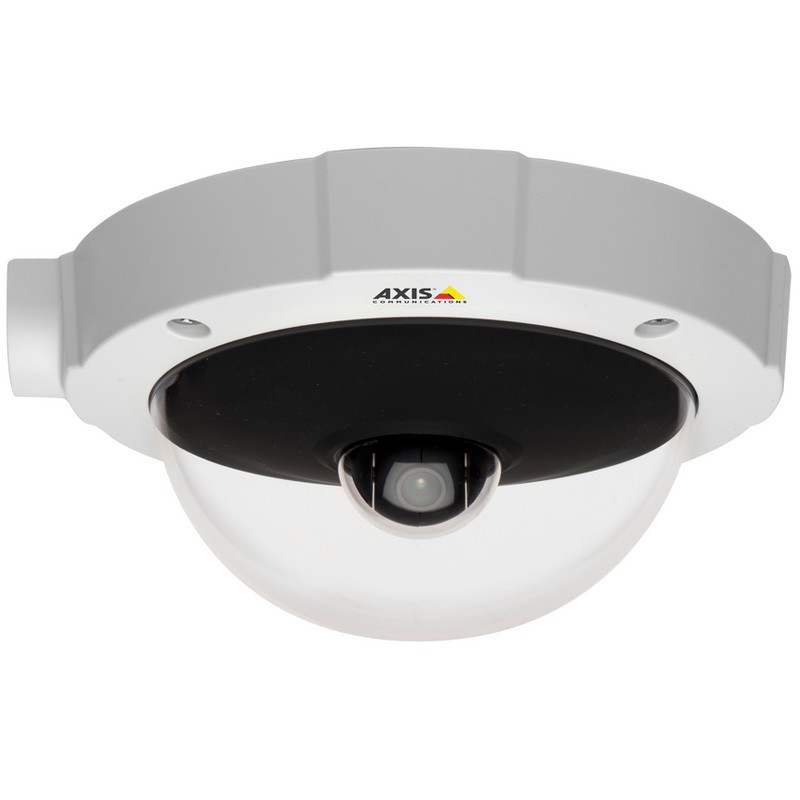

M5014-V PTZ Dome Network Camera
Cost-effective camera with broad coverage
AXIS M5014-V PTZ Dome Network Camera offers ±180° pan, 90° tilt and 3x digital zoom. It is affordably priced for remote monitoring of indoor areas such as schools, train stations and warehouses. AXIS M5014-V provides full frame rate video in HDTV 720p resolution. It can send multiple H.264 and Motion JPEG video streams simultaneously.
It’s perfect for installations above a window or entrance under the eaves overlooking the exterior of a building, ensuring no intruders access the area without the knowledge of the owner. AXIS M5014-V is also ideal under ceilings at airports and other semi outdoors places where there is a risk for vandalism.
Protective casing and easy installation on hard ceilings
With an IP66 rating, the camera is protected against the ingress of dust and high pressure water jets from any direction. The camera is also IK10-rated for protection against impact and vandal acts.
AXIS M5014-V is designed for quick and easy installation on hard ceilings. The network cable may be routed in three different ways: routing the cable through a conduit; wrapping the cable around a designated cable track; routing the cable through the ceiling. The camera is powered with Power over Ethernet (PoE) using a PoE switch or midspan, which eliminates the need for power cables and reduces installation cost.
AXIS M5014-V PTZ Dome Network Camera offers ±180° pan, 90° tilt and 3x digital zoom. It is affordably priced for remote monitoring of indoor areas such as schools, train stations and warehouses. AXIS M5014-V provides full frame rate video in HDTV 720p resolution. It can send multiple H.264 and Motion JPEG video streams simultaneously.
It’s perfect for installations above a window or entrance under the eaves overlooking the exterior of a building, ensuring no intruders access the area without the knowledge of the owner. AXIS M5014-V is also ideal under ceilings at airports and other semi outdoors places where there is a risk for vandalism.
Protective casing and easy installation on hard ceilings
With an IP66 rating, the camera is protected against the ingress of dust and high pressure water jets from any direction. The camera is also IK10-rated for protection against impact and vandal acts.
AXIS M5014-V is designed for quick and easy installation on hard ceilings. The network cable may be routed in three different ways: routing the cable through a conduit; wrapping the cable around a designated cable track; routing the cable through the ceiling. The camera is powered with Power over Ethernet (PoE) using a PoE switch or midspan, which eliminates the need for power cables and reduces installation cost.
0553-001
Data sheet
- Certification
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Connectivity technology
- Wired
- Depth
- 210 mm
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Form factor
- dome
- Height
- 104 mm
- HTTPS encryption
- Yes
- International Protection (IP) code
- IP66
- IP address filtering
- Yes
- Maximum resolution
- 1280 x 720 pixels
- Minimum illumination
- 1.4 lx
- Mounting type
- Ceiling
- Night vision
- No
- Operating temperature (T-T)
- 0 - 40 °C
- Optical sensor size
- 1/4 "
- Placement supported
- Indoor
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, CIFS/ SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Viewing angle, horizontal
- 60 °
- Weight
- 940 g
- Wi-Fi
- No
Specific References
- EAN13
- 0592894251281
M5014-V PTZ Dome Network Camera
