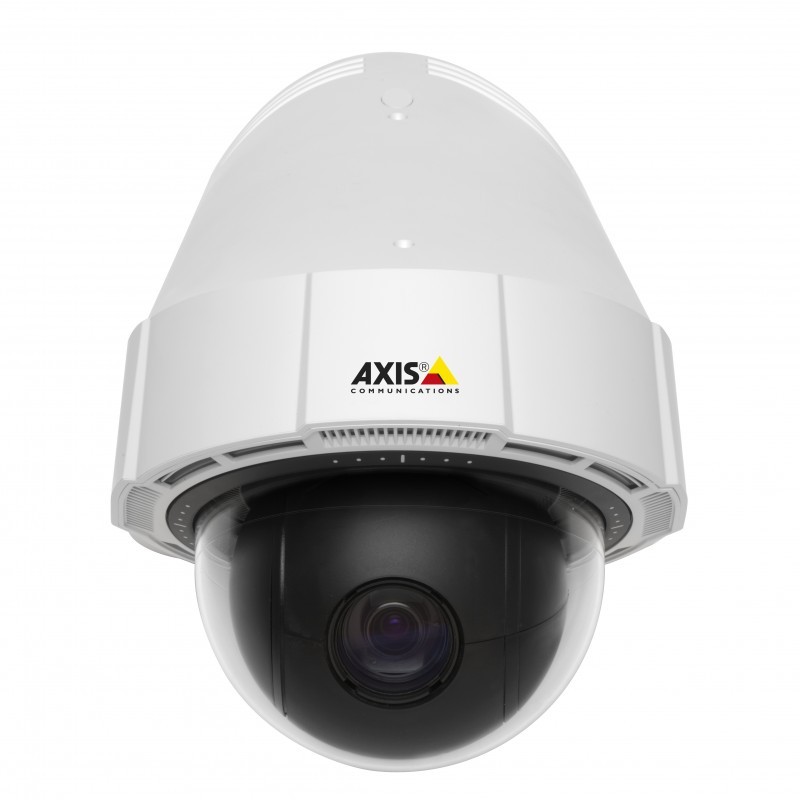

Axis P5415-E
Outdoor-Ready, Dome, Axis 1/2.9” RGB CMOS, 18x Optical Zoom, HDTV 1080p, PTZ, 2-Way Audio, 256MB RAM, 128MB Flash, SD/SDHC/SDX, Fast Ethernet, PoE+
Designed to blend in
AXIS P5415–E PTZ Dome Network Camera is an attractively priced, outdoor-ready HDTV 1080p PTZ dome with 18x optical zoom for wall-mount surveillance installations. Designed to blend in with the environment, the camera is ideal for use in city and perimeter surveillance, parking houses and school yards.
The camera’s built-in wall bracket enables easy installation and lowers total installation costs since a separate mounting accessory is not required. The integrated sunshield can be easily removed and repainted to match the color of a building façade. The sloping form helps the camera resist attempts by vandals to pull it down with a rope.
Durable, low-maintenance mechanics
AXIS P5415–E’s innovations extend inside as well. It has a direct drive pan/tilt system that enables unsurpassed endurance. With no belts or gears, AXIS P5415–E is a reliable, low-maintenance PTZ camera.
Detailed zoomed-in views
The 18x optical zoom with autofocus, in combination with the HDTV 1080p resolution, provides detailed zoomed-in views. The camera’s very light sensitive image sensor enables it to provide high quality video in low light situations. At night, its day/night functionality allows it to make use of infrared light from available light sources to produce high quality black and white video.
When mounted on the corner of a building, AXIS P5415–E enables a 270° pan for wide area coverage. Support for Advanced Gatekeeper enables the camera to automatically pan, tilt and zoom in to a preset position when motion is detected in a predefined area.
Two-way audio & I/Os
The camera has a hidden junction box that supports two-way audio, a memory card slot, four configurable inputs/outputs to external devices, and the option of using either 24 V DC or Power over Ethernet Plus (IEEE 802.3at
AXIS P5415–E PTZ Dome Network Camera is an attractively priced, outdoor-ready HDTV 1080p PTZ dome with 18x optical zoom for wall-mount surveillance installations. Designed to blend in with the environment, the camera is ideal for use in city and perimeter surveillance, parking houses and school yards.
The camera’s built-in wall bracket enables easy installation and lowers total installation costs since a separate mounting accessory is not required. The integrated sunshield can be easily removed and repainted to match the color of a building façade. The sloping form helps the camera resist attempts by vandals to pull it down with a rope.
Durable, low-maintenance mechanics
AXIS P5415–E’s innovations extend inside as well. It has a direct drive pan/tilt system that enables unsurpassed endurance. With no belts or gears, AXIS P5415–E is a reliable, low-maintenance PTZ camera.
Detailed zoomed-in views
The 18x optical zoom with autofocus, in combination with the HDTV 1080p resolution, provides detailed zoomed-in views. The camera’s very light sensitive image sensor enables it to provide high quality video in low light situations. At night, its day/night functionality allows it to make use of infrared light from available light sources to produce high quality black and white video.
When mounted on the corner of a building, AXIS P5415–E enables a 270° pan for wide area coverage. Support for Advanced Gatekeeper enables the camera to automatically pan, tilt and zoom in to a preset position when motion is detected in a predefined area.
Two-way audio & I/Os
The camera has a hidden junction box that supports two-way audio, a memory card slot, four configurable inputs/outputs to external devices, and the option of using either 24 V DC or Power over Ethernet Plus (IEEE 802.3at
0546-001
Data sheet
- Certification
- N 50121-4, IEC 62236-4: 2008, EN 50581, EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, I
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Form factor
- dome
- Frame rate
- 30 fps
- HTTPS encryption
- Yes
- International Protection (IP) code
- IP66
- IP address filtering
- Yes
- Maximum resolution
- 1920 x 1080 pixels
- Minimum illumination
- 0.04 lx
- Mounting type
- Wall
- Night vision
- Yes
- Operating temperature (T-T)
- -20 - 50 °C
- Optical sensor size
- 1/2.9 "
- Placement supported
- Outdoor
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Viewing angle, horizontal
- 59 °
- Weight
- 3500 g
- Wi-Fi
- No
Specific References
- EAN13
- 5052916889243
Outdoor-Ready, Dome, Axis 1/2.9” RGB CMOS, 18x Optical Zoom, HDTV 1080p, PTZ, 2-Way Audio, 256MB RAM, 128MB Flash, SD/SDHC/SDX, Fast Ethernet, PoE+
