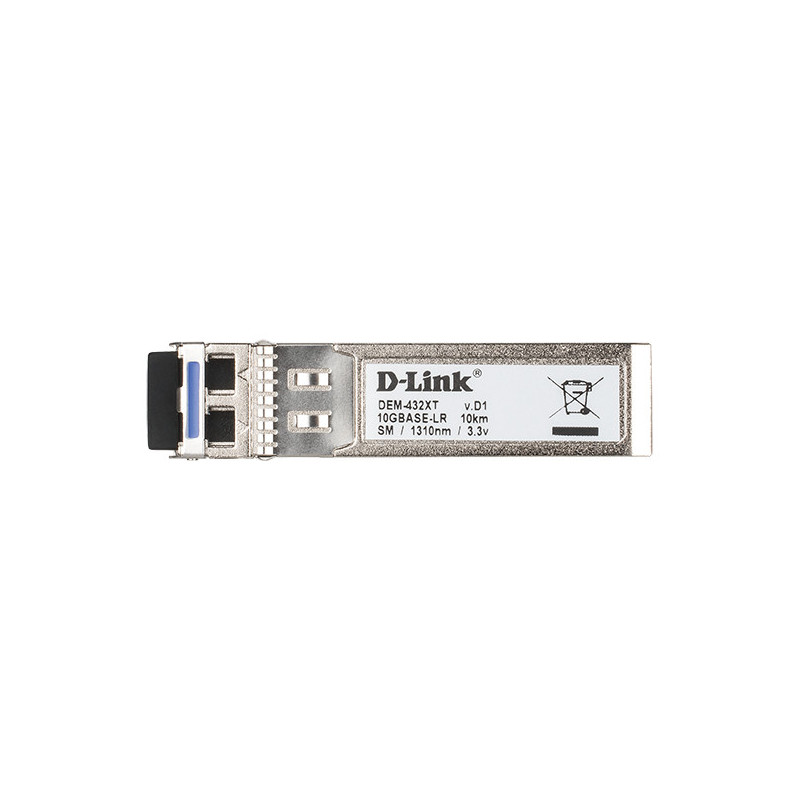

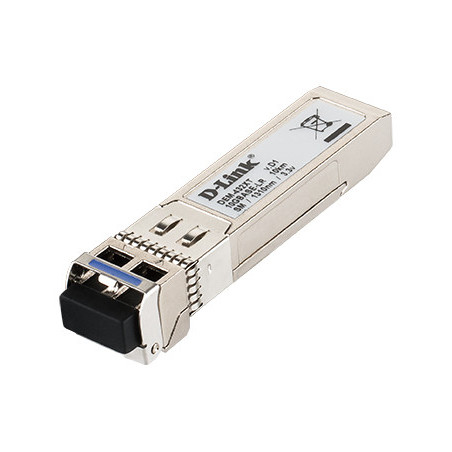

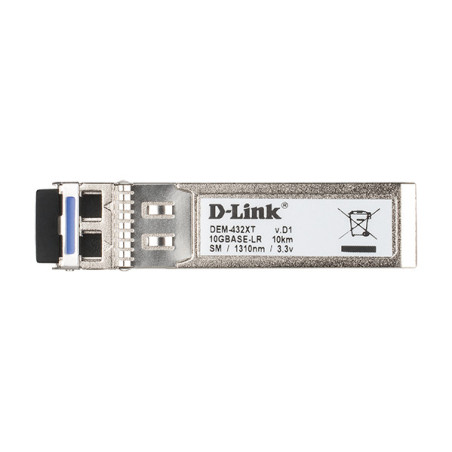

D-Link D-Link 10GBase-LR SFP+ Transceiver, 10km
D-Link 10GBase-LR SFP+ Transceiver, 10km, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, LR
Reasons to Buy
Technical Headlines
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
- Cost-effective solution for 10G fiber connection
- Small form factor, allowing higher port densities for 10G connections
- Lower power dissipation
- Hot-pluggable
- Compliant with Ethernet 802.3ae
- Compliant with fiber MSA (Multiple Source Agreement)
Technical Headlines
- SFP+ Fiber optic 10000 Mbit/s
- Wavelength: 1310 nm
- Hot-Plug support
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
DEM-432XT
Data sheet
- Certification
- CE, FCC, VCCI, MSA
- Depth
- 11.8 mm
- Fiber optic connector
- XFP
- Height
- 56.5 mm
- Interface type
- XFP
- Maximum current
- 96 A
- Maximum data transfer rate
- 96 Gbit/s
- Maximum transfer distance
- 900 m
- Mean time between failures (MTBF)
- 4650000 h
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating relative humidity (H-H)
- 5 - 85%
- Operating temperature (T-T)
- 8 - 35 °C
- Package weight
- 64 g
- Package width
- 74 mm
- Safety
- Yes
- Storage temperature (T-T)
- 8 - 85 °C
- Wavelength
- [1250 nm – 1600 nm]
- Weight
- 19.5 g
- Width
- 993 mm
- Product colour
- White,Black
- Shipping (inner) case net weight
- 9656 g
- Shipping (inner) case gross weight
- 9750 g
- Pallet gross weight (air)
- 628450 g
- Pallet height (air)
- 2047 mm
- Pallet gross weight (sea)
- 670000 g
- Pallet height (sea)
- 2097 mm
- Products per pallet (air)
- 750 pc(s)
- Pallet gross length
- 102 cm mm
- Pallet gross width
- 122 cm mm
- Products per pallet (sea)
- 750 pc(s)
- Maximum voltage
- 6 V
Specific References
- EAN13
- 0790069353192
