HomeActive EquipmentD-Link DGE-528T
D-Link 32-bit PCI. 10/100/1000Mbps autosense. Full Duplex. TP connector
D-Link 32-bit PCI. 10/100/1000Mbps autosense. Full Duplex. TP connector D-Link 32-bit PCI. 10/100/1000Mbps autosense. Full Duplex. TP connector D-Link 32-bit PCI. 10/100/1000Mbps autosense. Full Duplex. TP connector

D-Link DGE-528T

DGE-528T - PCI, Gigabit Ethernet, CSMA/CD

DGE-528T

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

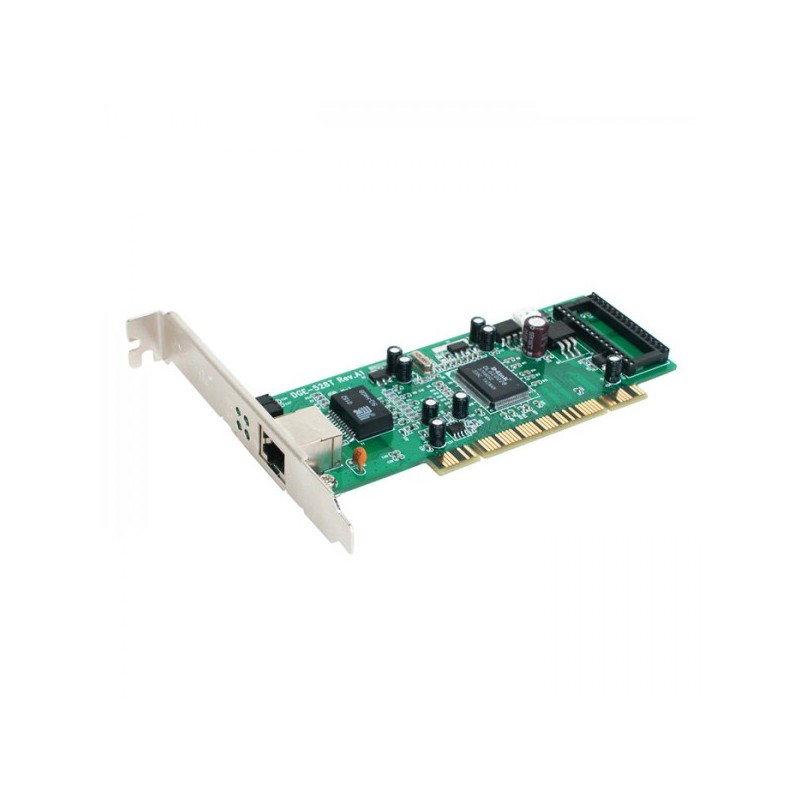

The D-Link DGE-528T is a high-performance 10/100/1000Mbps copper Gigabit PCI card for desktop PC. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth Gigabit workstation or a server running at 2000Mbps full-duplex speed..



High-performance Gigabit Speed

Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.



VLAN to Improve Performance and Security

The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.



Wake-On-LAN for Power Management

Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.



Flow Control to Minimize Packet Loss

The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.



Small Form Factor, Lower Power Requirement

Using a single chip solution, this card is very small in size and consumes very little power of your computer system.
CertificationFCC Class B, CE, ICES-003
Connectivity technologyWired
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Host interfacePCI
Operating temperature (T-T)0 - 50 °C
