Cisco GLC-GE-100FX
100BASE-FX SFP transceiver module for Gigabit Ethernet ports, 1310nm wavelength, 2km over MMF

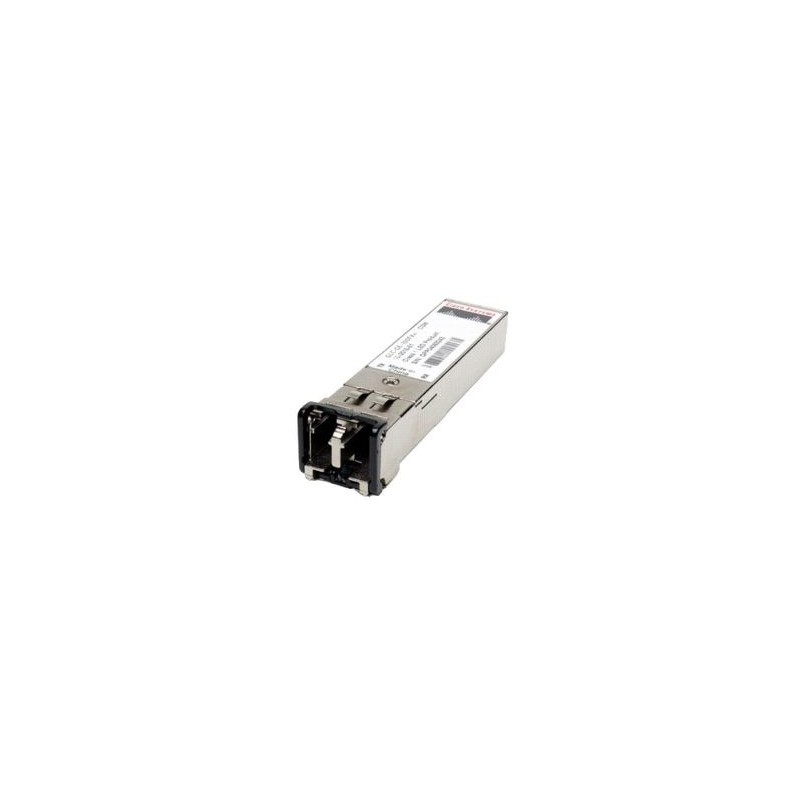

The Cisco® 100BASE-X Small Form-Factor Pluggable (SFP) device (Figure 1) is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.
Main features include the following:
- Hot-swappable when deployed, the switch or router does not have to reboot
- Supports the “pay-as-you-populate” model
- Interchangeable with other 100BASE-X SFPs on the same line card
- Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
- Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link
Cisco 100BASE-FX SFP
The Cisco 100BASE-FX SFP operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers (km) long.
GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.
GLC-FE-100FX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
GLC-GE-100FX modules operate in Gigabit Ethernet ports of Cisco switches and routers.
All these modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-FX standard.
Main features include the following:
- Hot-swappable when deployed, the switch or router does not have to reboot
- Supports the “pay-as-you-populate” model
- Interchangeable with other 100BASE-X SFPs on the same line card
- Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
- Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link
Cisco 100BASE-FX SFP
The Cisco 100BASE-FX SFP operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers (km) long.
GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.
GLC-FE-100FX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
GLC-GE-100FX modules operate in Gigabit Ethernet ports of Cisco switches and routers.
All these modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-FX standard.
GLC-GE-100FX=
Data sheet
- Cable type
- Multi-mode
- Cabling technology
- 100BASE-FX
- Compliance industry standards
- 802.3z.
- Data link protocols
- Fast Ethernet
- Data transfer rate
- 0.1 Gbit/s
- Data transfer rate (max)
- 1000 Mbit/s
- Dimensions (WxDxH)
- 56.7 x 13.8 x 9.8 mm
- Fiber optic connector
- XFP
- Interface type
- XFP
- Maximum transfer distance
- 900 m
- Networking standards
- IEEE 802.3ab
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -40 - 80 °C
- Power consumption (typical)
- 9W
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- 0 - 45 °C
- Technical features
- Wavelength (Min/Typ/Max): 1270/1300/1380
MMF Fiber type
Full duplex - Wavelength
- [1250 nm – 1600 nm]
Specific References
- EAN13
- 7463209770038
100BASE-FX SFP transceiver module for Gigabit Ethernet ports, 1310nm wavelength, 2km over MMF
