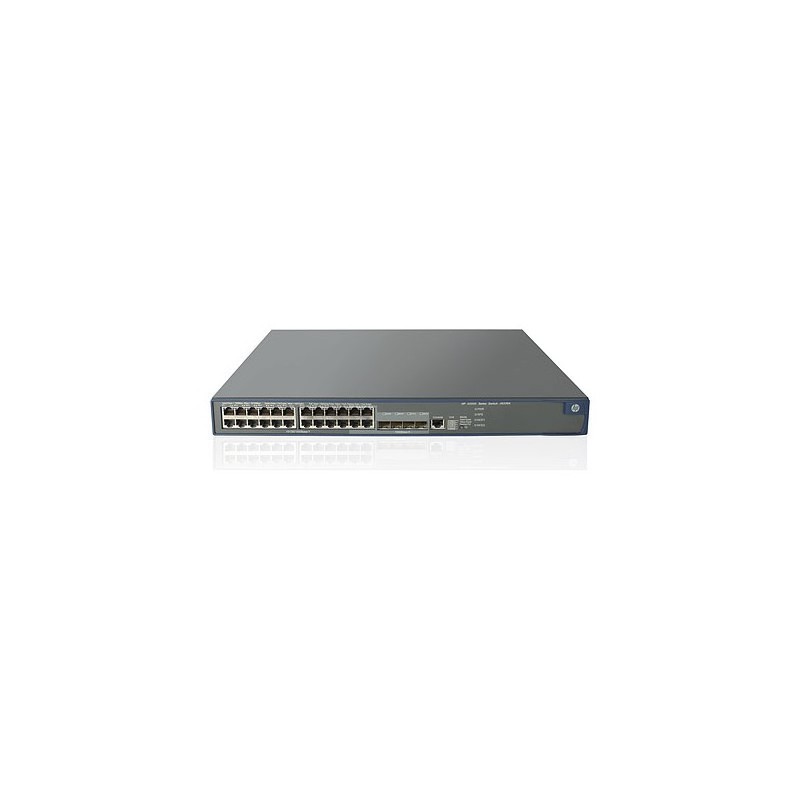

Hewlett Packard Enterprise 5500-24G-PoE
24x RJ-45 a10/100/1000 PoE+, 144 Gbps, IEEE 802.3/u/ab/at
These Gigabit Ethernet switches deliver quad-speed performance 10/100/1000 and 10 Gigabit Ethernet, as well as advanced voice-enhanced features such as Power over Ethernet (PoE), auto-voice VLAN, and Quality of Service (QoS). As a result, they are ideal for enterprise organizations seeking to build a secure, convergence-enhanced campus network. Robust IPv6 support and 10 Gigabit Ethernet uplinks future-proof an enterprise network against obsolescence. Resilient Ring Protection Protocol (RRPP), Smart Link, and Intelligent Resilient Framework (IRF) deliver 50 ms switchover and carrier-class reliability.
- Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
- Friendly port names: allow assignment of descriptive names to ports
- Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
- Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput
- Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance
- 16K MAC address table: provides access to many Layer 2 devices
- Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet
- Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
- Friendly port names: allow assignment of descriptive names to ports
- Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
- Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput
- Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance
- 16K MAC address table: provides access to many Layer 2 devices
- Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet
JG238A
Data sheet
- Certification
- FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
- Connectivity technology
- Wired
- Depth
- 420.1 mm
- Form factor
- 1U
- Height
- 43.7 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Safety
- UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
- Weight
- 5990 g
- Width
- 439.9 mm
Specific References
- EAN13
- 0886111500635
24x RJ-45 a10/100/1000 PoE+, 144 Gbps, IEEE 802.3/u/ab/at
