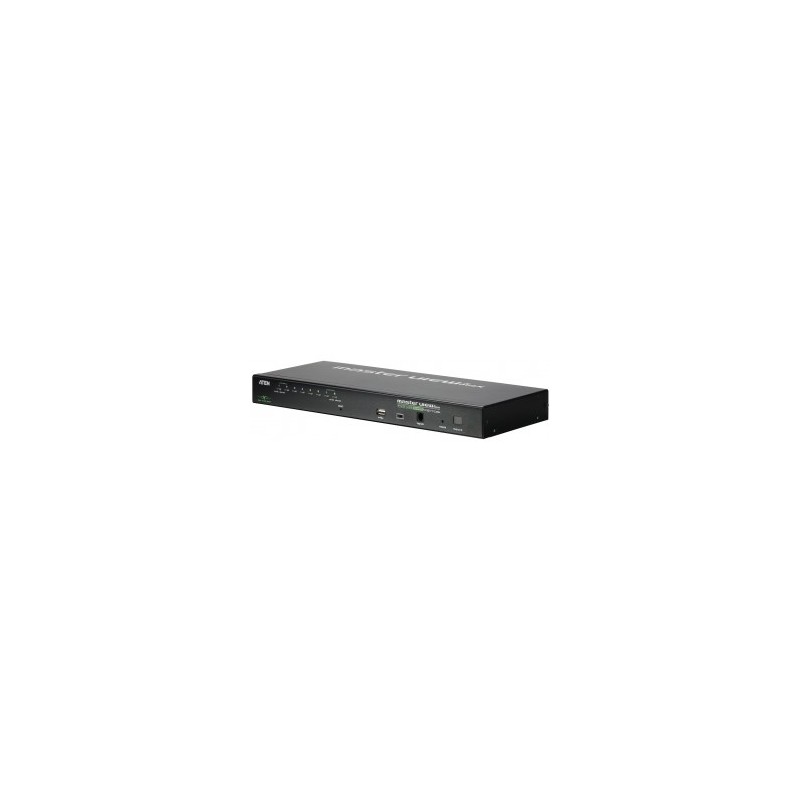

Aten CS1708I

8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
Out of Stock
Reference: CS1708I
Features

- Management

- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

- Up to 32 concurrent logins

- Multilanguage web UI support featuring a tree-structured local and remote OSD

- Adjustable video quality for flexible adaptation to diverse network environments

- Auto Scan feature for monitoring user-selected computers

- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).

- Firmware upgradable

- Backup and restore configuration and user account settings

- Event logging

- Enable/disable browser access

- IPv6 capable



Package Content

1x CS1708i KVM Switch

1x 2L-5202P PS/2 KVM Cable

1x 2L-5202U USB KVM Cable

1x LIN5-27X6-U21G Console Cable

1x Firmware Upgrade Cable

1x Mounting Kit

1x Foot Pad Set (4 pcs)

1x 0AD6-1605-24EG Power Adapter

1x Software CD

1x User Instructions
Aten
CS1708I

Data sheet

Connectivity technology
Wired
Depth
433 mm
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Height
44 mm
Material
Metal
Maximum resolution
2048 x 1536 pixels
Operating temperature (T-T)
0 - 50 °C
Weight
2810 g
Width
160 mm

Specific References

EAN13
5052179763366
