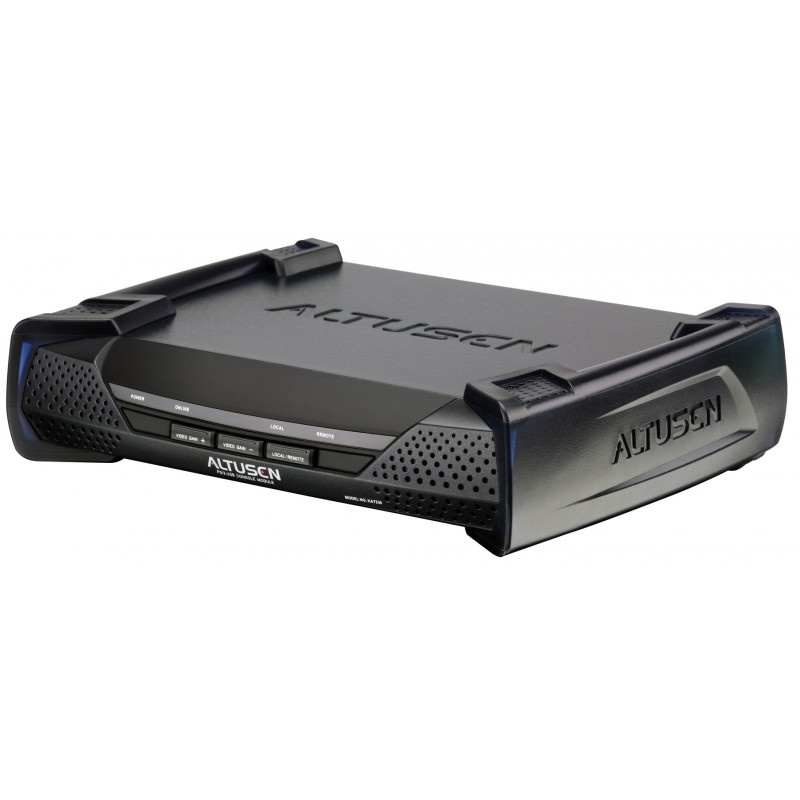

Aten KA7230

Features



- One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532)

- Supports PS/2 and USB keyboards and mice(Console)

- Switch between your workstation computer and the matrix KVM switch

- Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers

- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point

- Connects to matrix KVM switch via Cat 5e/6apple cable

- Superior video quality – 1280 x 1024 @ 60 Hz for up to 300 m

- Manual video gain control for fine tuning

- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus

- Firmware upgradeable



Package Contents



- 1x KA7230 PS/2-USB Console Module with stacking brackets

- 1x 2L-5202P KVM Cable

- 1x 0AD6-1605-24EG Power Adapter

- 1x RS-232 Cable (DB-9F to DB9-F)

- 1x Rack Mount Kit

- 1x User Instructions
