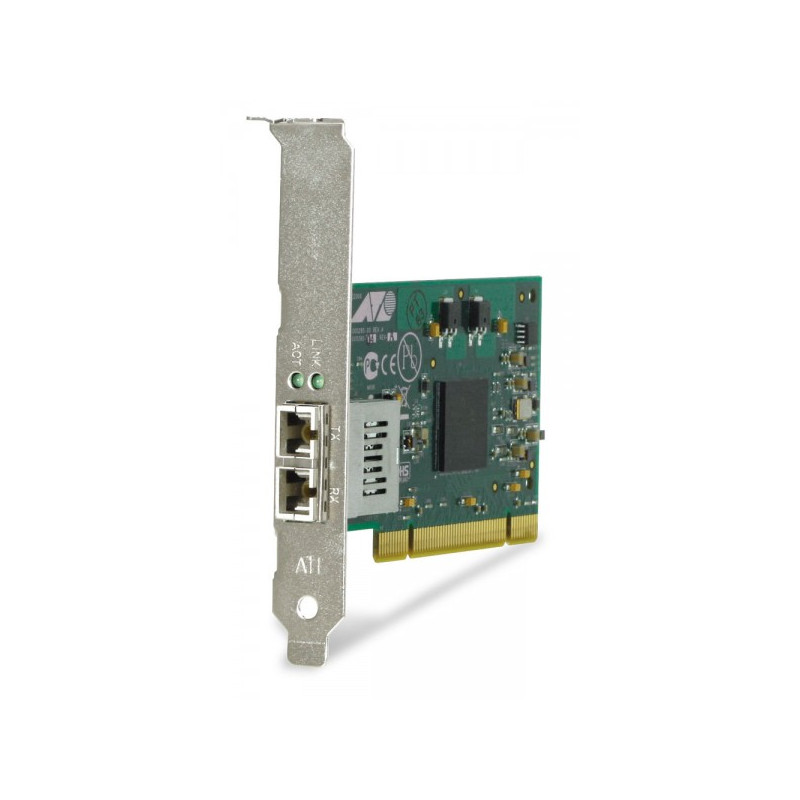

Allied Telesis  1000SX LC desktop fiber Network Interface Card (PCI)

Allied Telesis 1000SX LC desktop fiber Network Interface Card (PCI)

1000SX LC desktop fiber Network Interface Card (PCI)
Out of Stock
Reference: AT-2916SX/LC-001
The AT-2916SX, 32-bit, Gigabit Ethernet NIC provides a 1000Mbps fiber port to deliver desktop connectivity in fiber rich LAN environments. It's an ideal fit for the security needed in government applications. With both standard and low profile brackets included (standard bracket pre-assembled), driver support for most popular operating systems and PCI 2.2 capability, installation couldn't be easier. Available in SC or LC connector types.



-Jumbo frames support up to 9KB.

-TCP, UDP & IP checksum generation and check packet filtering based on checksum errors.

-Support for all popular operating systems, including Sun Solaris.

-Link Aggregation gives higher capacity and availability.

-Virtual LAN (VLAN) support for complete network optimization.

-Virtual Cable Tester (VCT) for cable fault diagnostics.

-Advanced Power Management (ACPI).

-Bring a remote sleeping computer to full power with Wake-on-LAN (WOL).

-Network Administration Support with remote boot (PXE 2.0).
AT-2916SX/LC-001

Data sheet

Certification
RoHS, UL, FCC/EN55022 B, TUV, EN55024, CE, C-TICK,
VCCI
Connectivity technology
Wired
Depth
64 mm
Ethernet LAN
Yes
Host interface
PCI
Operating temperature (T-T)
0 - 50 °C
Width
120 mm

Specific References

EAN13
7670351810288
