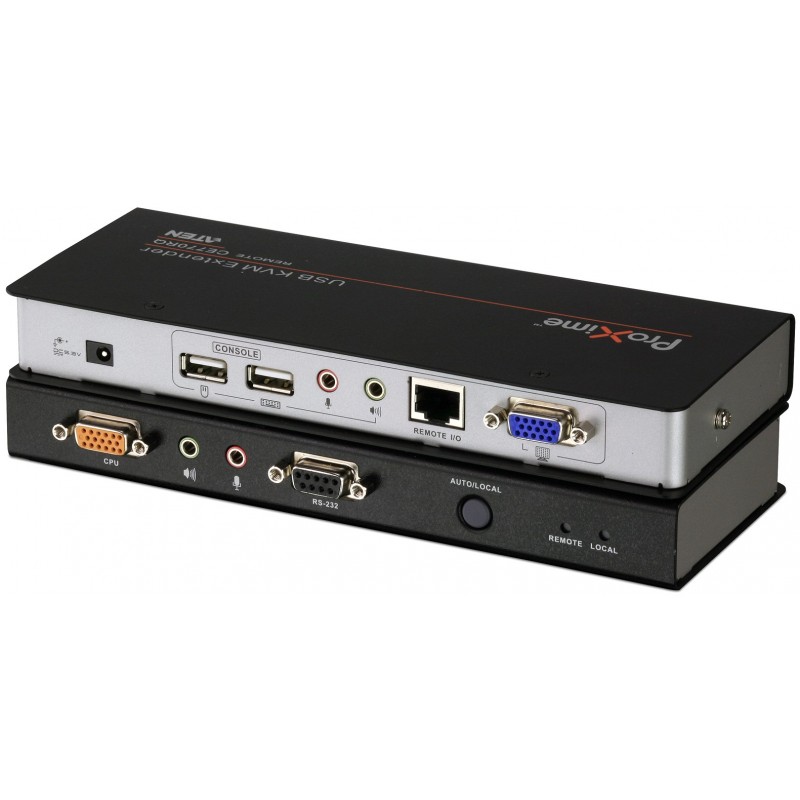

Aten CE770 USB KVM Extender
Aten CE770 USB KVM Extender Aten CE770 USB KVM Extender Aten CE770 USB KVM Extender Aten CE770 USB KVM Extender

Aten CE770

USB VGA KVM Extender with Audio, RS-232 and Deskew (300m)

CE770

Stock Due 06-09-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features

- Local and Remote Units connect at distances up to 300 m using Cat 5e cable

- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles

- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance

- Built-in ASIC for greater reliability and compatibility

- Auto Signal Compensation (ASC)

- RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners

- Sun/Mac keyboard support and emulation*

- Audio Enabled - supports stereo speakers and microphone

- USB overcurrent detection and prevention

- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button

- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

- High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)

- Superior Audio - no loss in audio quality at 300 m

- Spports Wide Screen formats

- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

- Hot pluggable

- Rack mountable

- Easy to install - no software required - connecting cables to the devices is all it takes



Package Content

- 1x CE770L USB KVM Extender (Local Unit);

- 1x CE770RQ USB KVM Extender (Remote Unit);

- 1x USB KVM Cable (1.8m);

- 2x Power Adapter;

- 1x Rack Mount Kits;

- 2x Grounding Wires;

- 1x User Manual;

- 1x Quick Start Guide.
Connectivity technologyWired
Maximum resolution1920 x 1200 pixels
Weight490 g
