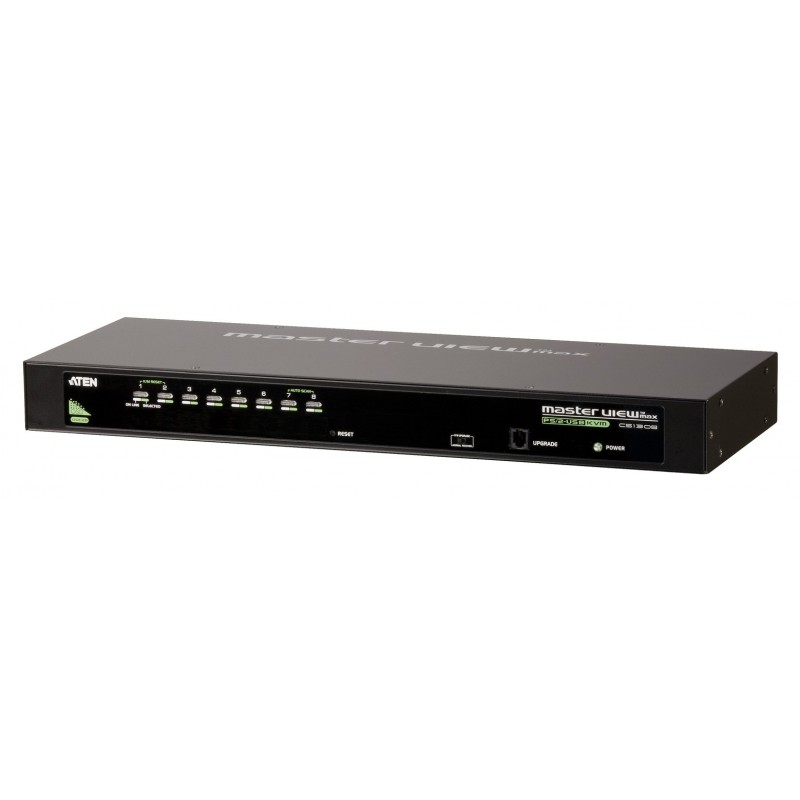

Aten CS1308
8-Port USB - PS/2 VGA KVM Switch
Features
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels* - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
*Cascade function only works with USB KVM cable set connections.
Package Contents
- 1x CS1308 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels* - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
*Cascade function only works with USB KVM cable set connections.
Package Contents
- 1x CS1308 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Data sheet
- Audio connections
- No
- Built-in display
- No
- Colour of product
- Black
- Compatible operating systems
- Windows 2000/XP/Vista, Linux, Mac, Sun
- Connectivity technology
- Wired
- DC-in jack
- Yes
- Depth
- 160 mm
- Ethernet LAN connection
- No
- Height
- 990mm
- I/O ports
- 1 x RJ11
- Keyboard port type
- No
- Material
- Zinc steel
- Maximum resolution
- 2048 x 1536 pixels
- Mouse port type
- No
- Number of computers controlled
- 8
- Operating relative humidity (H-H)
- 0 - 80 %
- Operating relative humidity range
- 0 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Power consumption (typical)
- 9W
- Power requirements
- DC 5.3 V
- RoHS compliance
- Yes
- Scan interval
- 255 s
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- USB 2.0 ports quantity
- 7
- VGA (D-Sub) ports quantity
- 9
- Video port type
- VGA
- Weight
- 1890 g
- Width
- 433 mm
Specific References
- EAN13
- 4710423775916
