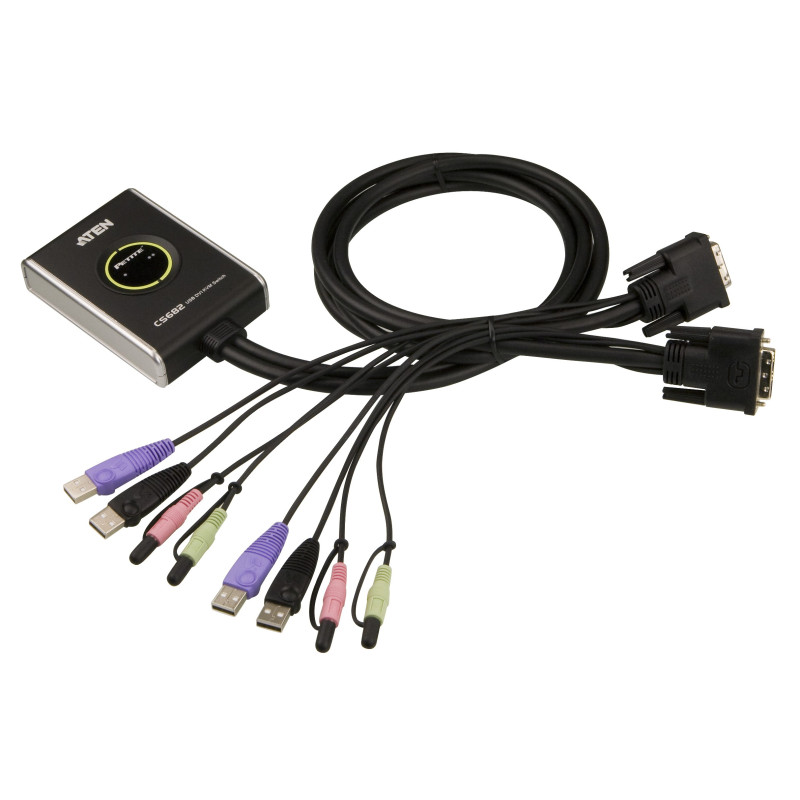

Aten CS682
2-Port USB DVI KVM Switch with Audio
Features
- One DVI video console controls two USB computers
- Fully DVI-Digital specification compliant
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Compact design, built-in all-in-on cables (2 x 1.2 m)
- Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
- Superior video quality - up to 1920 x 1200
- Compatible with widescreen LCD monitors
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
- Supports multimedia keyboards
- Supports wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation**
- HDCP Compliant
- Non-Powered
- Firmware upgradable
* This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
** 1. PC keyboard combinations emulate Mac/Sun keyboards.
** 2. Mac/Sun keyboards work only with their own computers.
Package Contents
- 1x CS682 2-Port USB 2.0 DVI KVM Switch
- 1x Remote Port Selector
- 1x User Instructions
- One DVI video console controls two USB computers
- Fully DVI-Digital specification compliant
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Compact design, built-in all-in-on cables (2 x 1.2 m)
- Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
- Superior video quality - up to 1920 x 1200
- Compatible with widescreen LCD monitors
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
- Supports multimedia keyboards
- Supports wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation**
- HDCP Compliant
- Non-Powered
- Firmware upgradable
* This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
** 1. PC keyboard combinations emulate Mac/Sun keyboards.
** 2. Mac/Sun keyboards work only with their own computers.
Package Contents
- 1x CS682 2-Port USB 2.0 DVI KVM Switch
- 1x Remote Port Selector
- 1x User Instructions
Data sheet
- Built-in display
- No
- Cable length
- 1.8 m
- Colour of product
- Black
- Connectivity technology
- Wired
- Depth
- 111 mm
- Dimensions (WxDxH)
- 78 x 111 x 25 mm
- Headphone outputs
- 2
- Height
- 990mm
- I/O ports
- 4 x USB Type A M
2 x DVI-D M
4 x Mini Stereo Jack F - Keyboard port type
- USB
- Maximum resolution
- 1920 x 1200 pixels
- Mouse port type
- USB
- Number of computers controlled
- 2
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Ports quantity
- 2
- Power consumption (typical)
- 3.05 W
- Power requirements
- 5V
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Video port type
- DVI-D
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
- Width
- 78 mm
Specific References
- EAN13
- 4710423775909
