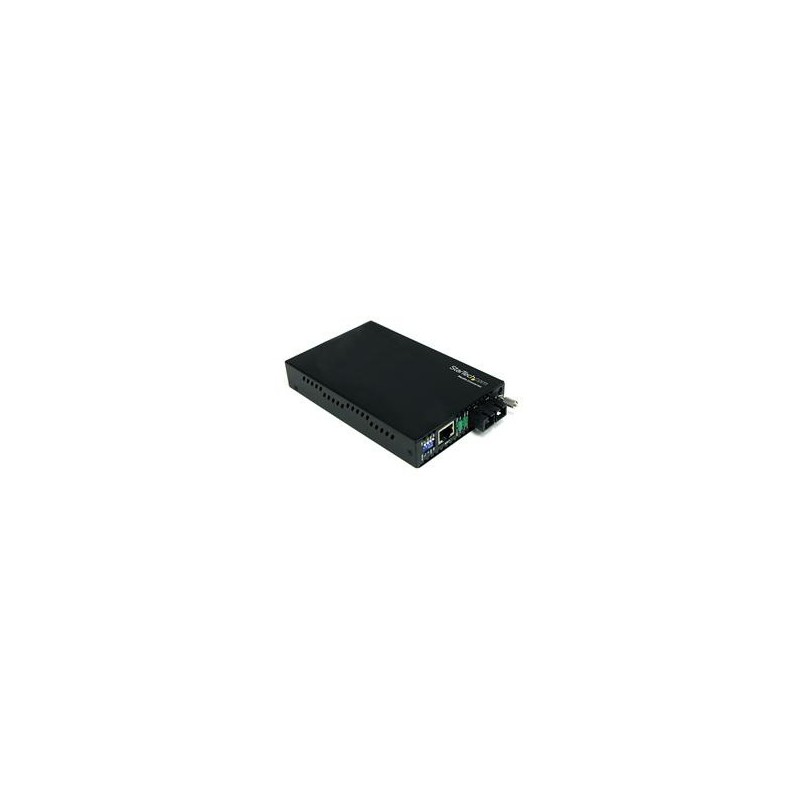

StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km

10/100 Mbps Single Mode Fiber Media Converter SC 30 km
In Stock
Reference: ET90110SM302
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
StarTech.com
ET90110SM302

Data sheet

Auto MDI/MDI-X
Yes
Certification
CE, FCC
Colour of product
Black
Connectivity technology
Wired
Data transfer rate (max)
200 Mbit/s
DC-in jack
Yes
Dimensions (WxDxH)
95 x 160 x 20 mm
Ethernet LAN (RJ-45) ports quantity
1
Ethernet LAN data transfer rates
10, 100 Mbit/s
Fiber optic connector
XFP
Maximum transfer distance
30000 m
Operating relative humidity (H-H)
10 - 90 %
Operating relative humidity range
10 - 90 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 60 °C
Output voltage
9.5 V
Package weight
700 g
Package width
985.6 mm
RoHS compliance
Yes
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-10 - 70 °C
Wavelength
[1250 nm – 1600 nm]
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)

Specific References

EAN13
0065030846264
