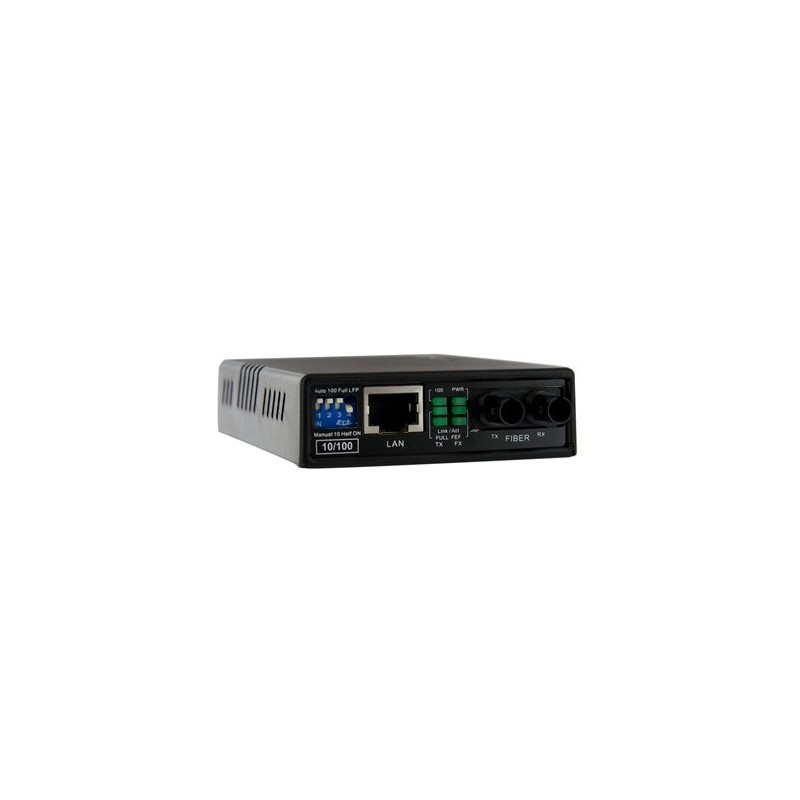

StarTech.com Ethernet Fiber Converter
10/100 Ethernet to Multi Mode Fiber Media Converter ST 2 km
This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Data sheet
- Cabling technology
- 10Base-T, 100Base-Tx, 100Base-Fx
- Connectivity technology
- Wired
- Data transfer rate (max)
- 100 Mbit/s
- Fiber type
- MM, FX, ST
- Interface
- LAN
- Maximum transfer distance
- 900 m
- Package height
- 2.56 mm
- Package width
- 5.71 mm
- Source data-sheet
- Icecat.biz
Specific References
- EAN13
- 0065030836517
