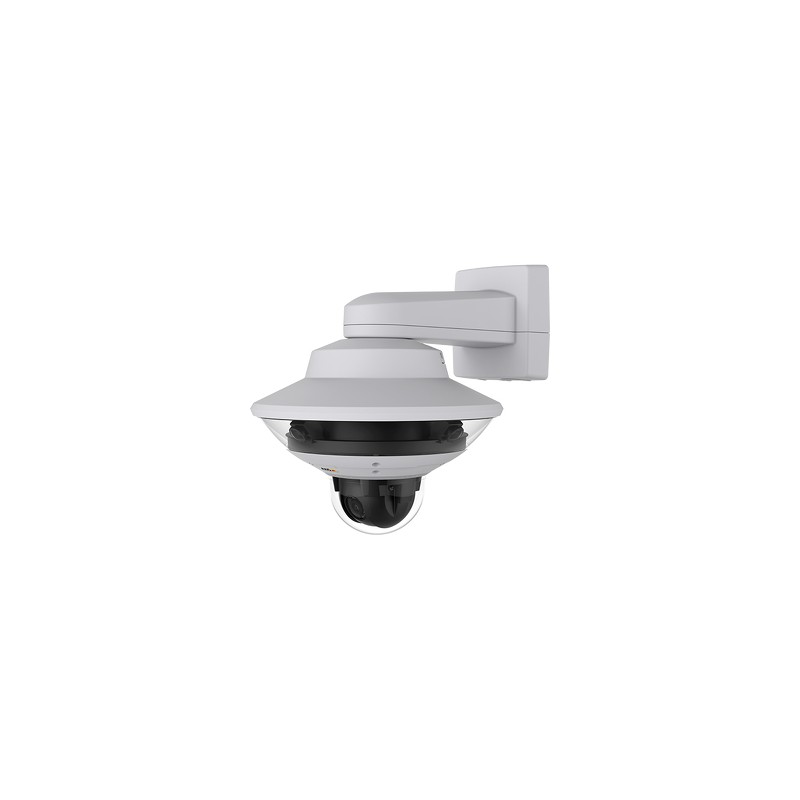

Axis Q6000-E 50Hz Mk II
4 x 1/2.8” CMOS, 2 MP, PTZ, 1280 x 720, IP66, PoE
- Full 360° overview
- One-click PTZ control
- Exchangeable and tiltable lenses
- Axis’ Zipstream technology
- Compatible with any AXIS Q60-E model
AXIS Q6000-E Mk II is ideal for city surveillance applications such as monitoring of public squares and parking lots and other open areas. It features four 2-megapixel sensors to provide a complete 360° field of view over large areas.
AXIS Q6000-E Mk II is designed for integration with any AXIS Q60-E camera, creating a solution that goes from overview to detail in a single click. In other words, AXIS Q6000-E Mk II gives you the big picture while AXIS Q60-E lets you capture every detail with great precision simultaneously.
Zero in on problem areas
AXIS Q6000-E Mk II also give you the option of replacing the standard lens in one or more sensors with either a 6 mm or 16 mm tiltable lens and upgrading the resolution to HDTV 1080p. Then you can use that sensor to focus on an area of particular interest.
Sharp images. Low bandwidth.
AXIS Q6000-E Mk II also features Axis' Zipstream technology, which significantly lowers bandwidth and storage requirements while preserving high-quality images and forensic detail.
Quick and easy installation
Any AXIS Q60-E is quickly and easily mounted inside the AXIS Q6000-E Mk II. There’s no need for extra mounting brackets or other extra equipment because the two cameras use the same brackets and network cable. Power over Ethernet is supplied to both cameras through AXIS Q6000-E Mk II, which simplifies installation even more.
- One-click PTZ control
- Exchangeable and tiltable lenses
- Axis’ Zipstream technology
- Compatible with any AXIS Q60-E model
AXIS Q6000-E Mk II is ideal for city surveillance applications such as monitoring of public squares and parking lots and other open areas. It features four 2-megapixel sensors to provide a complete 360° field of view over large areas.
AXIS Q6000-E Mk II is designed for integration with any AXIS Q60-E camera, creating a solution that goes from overview to detail in a single click. In other words, AXIS Q6000-E Mk II gives you the big picture while AXIS Q60-E lets you capture every detail with great precision simultaneously.
Zero in on problem areas
AXIS Q6000-E Mk II also give you the option of replacing the standard lens in one or more sensors with either a 6 mm or 16 mm tiltable lens and upgrading the resolution to HDTV 1080p. Then you can use that sensor to focus on an area of particular interest.
Sharp images. Low bandwidth.
AXIS Q6000-E Mk II also features Axis' Zipstream technology, which significantly lowers bandwidth and storage requirements while preserving high-quality images and forensic detail.
Quick and easy installation
Any AXIS Q60-E is quickly and easily mounted inside the AXIS Q6000-E Mk II. There’s no need for extra mounting brackets or other extra equipment because the two cameras use the same brackets and network cable. Power over Ethernet is supplied to both cameras through AXIS Q6000-E Mk II, which simplifies installation even more.
01005-001
Data sheet
- Certification
- EN 55032 Class A, EN 55024, IEC 62236-4, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 50121-4, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, ITE, RCM AS/NZS CISPR 22 Class A, KCC KN22 Class A, KN24, IEC/EN/UL 60950-1, IEC/EN
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 3
- Form factor
- dome
- Frame rate
- 30 fps
- Height
- 308 mm
- Housing material
- Aluminium,Polycarbonate
- International Protection (IP) code
- IP66
- Maximum resolution
- 1280 x 720 pixels
- Minimum illumination
- 0.3 lx
- Mounting type
- Ceiling/wall
- Operating temperature (T-T)
- -30 - 50 °C
- Optical sensor size
- 1/2.8 "
- Placement supported
- Indoor & outdoor
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPSc , SSL/TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
- Video compression formats
- H.264,M-JPEG
- Viewing angle, horizontal
- 152 °
- Viewing angle, vertical
- 85 °
- Number of cameras
- 1
Specific References
- EAN13
- 7331021054738
4 x 1/2.8” CMOS, 2 MP, PTZ, 1280 x 720, IP66, PoE
