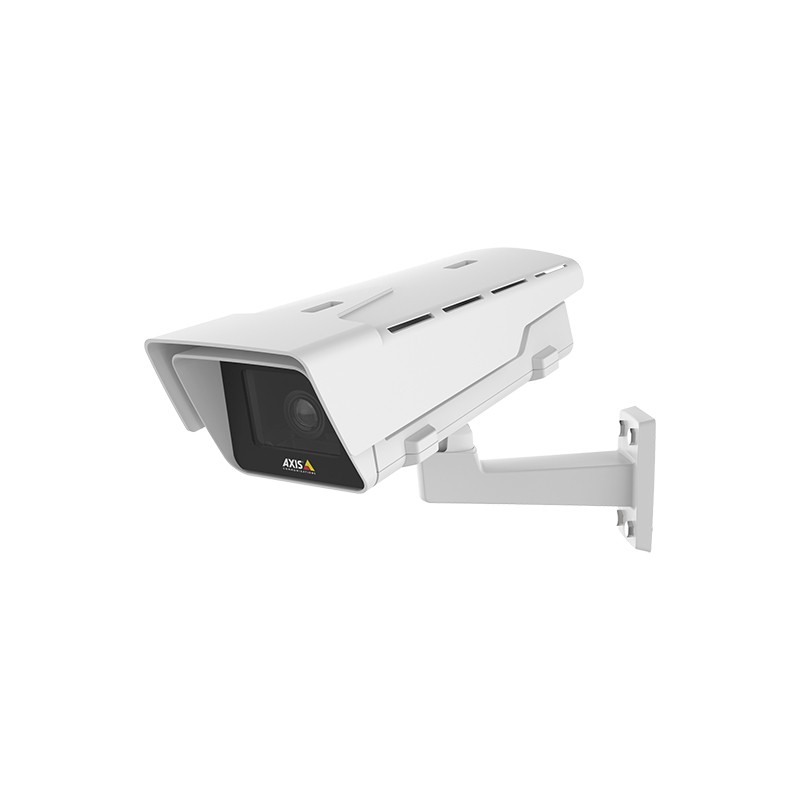

Axis P1364-E
Outdoor-Ready, CMOS 1/3”, HDTV 720p, WDR, 512 MB RAM, 256 MB Flash, Fast Ethernet, PoE, IP66, IP67, NEMA 4X, IK10
Outdoor-ready HDTV 720p surveillance even in extreme low-light
Outstanding light sensitivity
AXIS P1364-E Network Camera has outstanding light-sensitivity and delivers superior HDTV 720p video at 50/60 frames per second in H.264 and Motion JPEG. The day/night camera features a P-Iris lens for optimal image clarity, in addition to digital PTZ and multi-view streaming. Two-way audio, audio detection, video motion detection, active tampering alarm and a microSD/microSDHC slot for optional local storage are also supported. The camera is suitable for outdoor use at airports, banks, shops, for city surveillance and any application that requires coverage of a large area or extremely high image detail.
WDR – Forensic Capture
With WDR – Forensic Capture, the video is highly optimized for forensic purposes and provides great levels of detail – even in scenes with complex light conditions. Furthermore, AXIS P1364-E includes the ability to seamlessly transition between WDR and Lightfinder mode.
Axis’ Zipstream technology built into AXIS P1364 reduces bandwidth and storage requirements by an average 50% or more without any costly and complicated integration. Zipstream ensures that important details in the image get enough attention in the video stream while unnecessary data can be removed.
Smooth installation and arctic temperature control
The lightweight, IP66/67, NEMA 4X, and IK10-rated camera is delivered with a wall mount bracket and a sunshield to protect it from dust, rain, snow and sun. Arctic temperature control ensures startup and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). In addition, installation streamlined with the aid of remote back focus, pixel counter and Power over Ethernet.
Outstanding light sensitivity
AXIS P1364-E Network Camera has outstanding light-sensitivity and delivers superior HDTV 720p video at 50/60 frames per second in H.264 and Motion JPEG. The day/night camera features a P-Iris lens for optimal image clarity, in addition to digital PTZ and multi-view streaming. Two-way audio, audio detection, video motion detection, active tampering alarm and a microSD/microSDHC slot for optional local storage are also supported. The camera is suitable for outdoor use at airports, banks, shops, for city surveillance and any application that requires coverage of a large area or extremely high image detail.
WDR – Forensic Capture
With WDR – Forensic Capture, the video is highly optimized for forensic purposes and provides great levels of detail – even in scenes with complex light conditions. Furthermore, AXIS P1364-E includes the ability to seamlessly transition between WDR and Lightfinder mode.
Axis’ Zipstream technology built into AXIS P1364 reduces bandwidth and storage requirements by an average 50% or more without any costly and complicated integration. Zipstream ensures that important details in the image get enough attention in the video stream while unnecessary data can be removed.
Smooth installation and arctic temperature control
The lightweight, IP66/67, NEMA 4X, and IK10-rated camera is delivered with a wall mount bracket and a sunshield to protect it from dust, rain, snow and sun. Arctic temperature control ensures startup and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). In addition, installation streamlined with the aid of remote back focus, pixel counter and Power over Ethernet.
0739-001
Data sheet
- Certification
- EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, C-tick AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22\nEN 50121-4/IE
- Connectivity technology
- Wired
- Depth
- 382 mm
- Ethernet LAN (RJ-45) ports
- 1
- Form factor
- box
- Height
- 120 mm
- Housing material
- Polymer
- International Protection (IP) code
- IP67
- Maximum resolution
- 1280 x 960 pixels
- Minimum illumination
- 0.01 lx
- Mounting type
- Ceiling/wall
- Operating temperature (T-T)
- -40 - 50 °C
- Optical sensor size
- 1/3 "
- Placement supported
- Outdoor
- Sensor type
- CMOS
- Video compression formats
- H.264,M-JPEG,MPEG4
- Viewing angle, horizontal
- 83 °
- Viewing angle, vertical
- 61 °
- Weight
- 1800 g
- Width
- 155 mm
- Number of cameras
- 1
Specific References
- EAN13
- 7331021051591
Outdoor-Ready, CMOS 1/3”, HDTV 720p, WDR, 512 MB RAM, 256 MB Flash, Fast Ethernet, PoE, IP66, IP67, NEMA 4X, IK10
