Axis Companion Eye L
1/2.8" RGB CMOS, 2 MP, 1920x1080, IP42, PoE
Day and night surveillance indoors or outdoors
Light or dark – Axis Companion Eye can handle any condition. Utilizing Wide dynamic range technology and IR illumination for surveillance in challenging light conditions or even total darkness.
Wide and flexible overview in all conditions

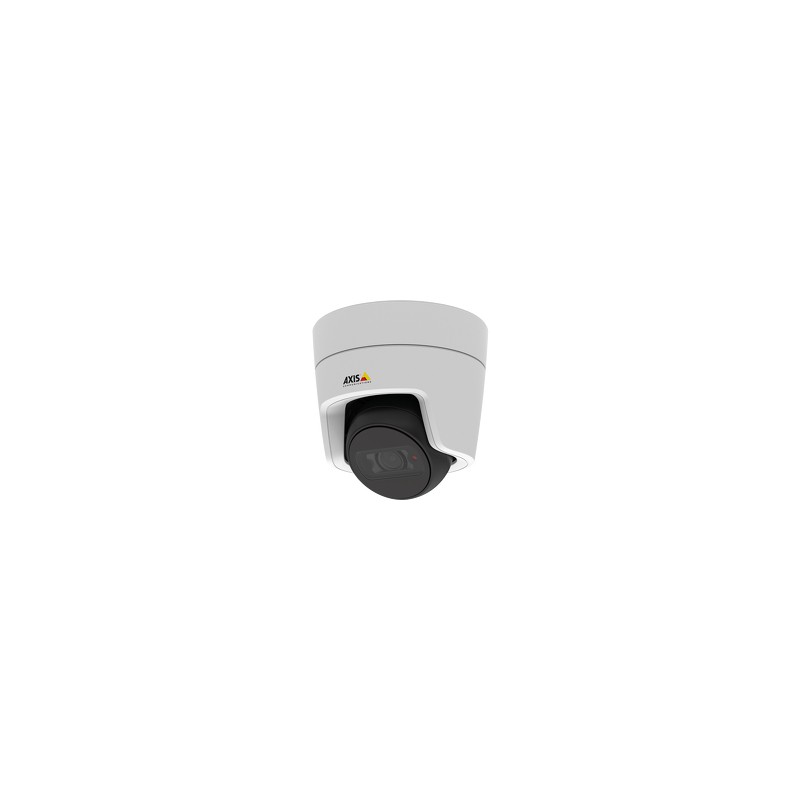

AXIS Companion Eye is an indoor-ready fixed mini dome. With 3-axis camera angle it offers a 115° horizontal view which can easily be adjusted even to corridor format. AXIS Companion Eye has a compact, flat-faced design that suppresses reflections. Utilizing Wide Dynamic Range technology and IR illumination for surveillance in challenging light conditions or even total darkness. The camera provides HDTV surveillance. AXIS Companion Eye features PoE that allows one cable to provide both network connectivity and electrical power.
Together with AXIS Companion Card 64 GB card the camera offers a convenient recording solution and the support for Axis Zipstream technology ensures maximized recording time.
- High video quality in HDTV 1080p and 2 MP resolution
- WDR to handle scenes with complex light conditions
- Built-in IR illumination for surveillance in total darkness
- PoE for network connectivity and electrical power with a single cable
- Supports microSD card and Axis’ Zipstream technology
Light or dark – Axis Companion Eye can handle any condition. Utilizing Wide dynamic range technology and IR illumination for surveillance in challenging light conditions or even total darkness.
Wide and flexible overview in all conditions
AXIS Companion Eye is an indoor-ready fixed mini dome. With 3-axis camera angle it offers a 115° horizontal view which can easily be adjusted even to corridor format. AXIS Companion Eye has a compact, flat-faced design that suppresses reflections. Utilizing Wide Dynamic Range technology and IR illumination for surveillance in challenging light conditions or even total darkness. The camera provides HDTV surveillance. AXIS Companion Eye features PoE that allows one cable to provide both network connectivity and electrical power.
Together with AXIS Companion Card 64 GB card the camera offers a convenient recording solution and the support for Axis Zipstream technology ensures maximized recording time.
- High video quality in HDTV 1080p and 2 MP resolution
- WDR to handle scenes with complex light conditions
- Built-in IR illumination for surveillance in total darkness
- PoE for network connectivity and electrical power with a single cable
- Supports microSD card and Axis’ Zipstream technology
0881-001
Data sheet
- Certification
- EN 55022 Class B, EN 55024, IEC 62471, EN 61000-6-1,\nEN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B,\nVCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B,\nKN35, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78,\nIEC 60068-2-14, IEC 60
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Form factor
- dome
- Frame rate
- 25 fps
- Height
- 85 mm
- Housing material
- Acrylonitrile styrene acrylate (ASA)
- International Protection (IP) code
- IP42
- Maximum resolution
- 1920 x 1080 pixels
- Minimum illumination
- 0.04 lx
- Mounting type
- Ceiling/wall
- Night vision distance
- 15 m
- Operating temperature (T-T)
- 0 - 50 °C
- Optical sensor size
- 1/2.8 "
- Placement supported
- Indoor & outdoor
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPSa , SSL/TLSa , CIFS/SMB, Bonjour, UPnPTM, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Video compression formats
- H.264,M-JPEG
- Viewing angle, horizontal
- 118 °
- Viewing angle, vertical
- 65 °
- Weight
- 360 g
- Number of cameras
- 1
Specific References
- EAN13
- 7331021055001
1/2.8" RGB CMOS, 2 MP, 1920x1080, IP42, PoE
