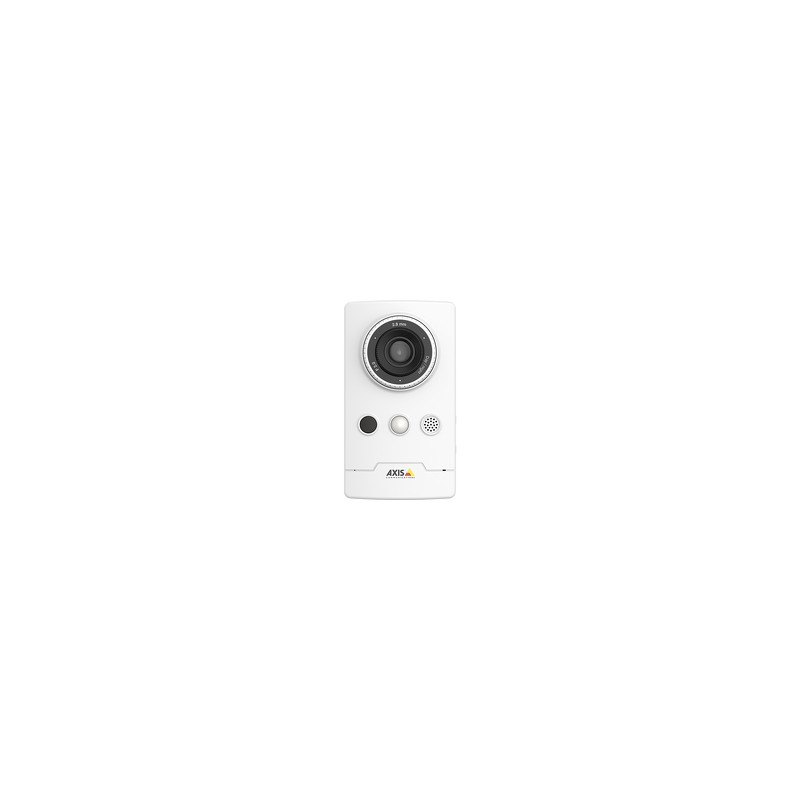

Axis Companion Cube
1/3" RGB CMOS, HDTV 1080p, 2 MP, IR LED, PIR-Sensor, PoE
Indoor surveillance 24/7
Distinctive features – offering new placement options and extra functionality.
Smart design for indoor surveillance
AXIS Companion Cube L features high quality video in HDTV 1080p with 2 MP resolution and Wide Dynamic Range technology. It has a built-in microphone for recording audio, and a PIR motion sensor for detecting movement in the dark. It also offers IR illumination and day and night functionality.
AXIS Companion Cube is designed for easy and flexible installation. The included bracket allows mounting both on walls and in corners.
AXIS Companion Cube features PoE that allows one cable to provide both network connectivity and electrical power. Cube has a built-in microSD card slot for edge storage.Together with AXIS Companion Card 64 GB card the camera offers a convenient recording solution and the support for Axis Zipstream technology ensures maximized recording time.
- High video quality in HDTV 1080p and 2 MP resolution
- Built-in IR illumination for surveillance in total darkness
- WDR to handle scenes with complex light conditions
- Built-in microphone, mini-speaker and PIR motion sensor
- Bracket for wall and corner mount
- PoE for network connectivity and electrical power with a single cable
- Supports microSD card and Axis' Zipstream technology
Distinctive features – offering new placement options and extra functionality.
Smart design for indoor surveillance
AXIS Companion Cube L features high quality video in HDTV 1080p with 2 MP resolution and Wide Dynamic Range technology. It has a built-in microphone for recording audio, and a PIR motion sensor for detecting movement in the dark. It also offers IR illumination and day and night functionality.
AXIS Companion Cube is designed for easy and flexible installation. The included bracket allows mounting both on walls and in corners.
AXIS Companion Cube features PoE that allows one cable to provide both network connectivity and electrical power. Cube has a built-in microSD card slot for edge storage.Together with AXIS Companion Card 64 GB card the camera offers a convenient recording solution and the support for Axis Zipstream technology ensures maximized recording time.
- High video quality in HDTV 1080p and 2 MP resolution
- Built-in IR illumination for surveillance in total darkness
- WDR to handle scenes with complex light conditions
- Built-in microphone, mini-speaker and PIR motion sensor
- Bracket for wall and corner mount
- PoE for network connectivity and electrical power with a single cable
- Supports microSD card and Axis' Zipstream technology
0891-001
Data sheet
- Certification
- EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024,\nEN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B,\nICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B,\nKN24, KN-35, IEC/EN/UL 60950-1, IEC/EN 62471, EN 62471
- Connectivity technology
- Wired
- DC output voltage
- 5
- Depth
- 37 mm
- Ethernet LAN (RJ-45) ports
- 1
- Form factor
- Cube
- Frame rate
- 30 fps
- Height
- 106 mm
- Housing material
- Aluminium,Plastic,Polycarbonate
- Maximum resolution
- 1920 x 1080 pixels
- Minimum illumination
- 0.05 lx
- Mounting type
- Desk/Wall
- Night vision distance
- 10 m
- Operating temperature (T-T)
- 0 - 40 °C
- Optical sensor size
- 1/3 "
- Placement supported
- Indoor
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPSa , SSL/TLSa , CIFS/SMB, Bonjour, UPnPTM, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Video compression formats
- H.264
- Viewing angle, horizontal
- 110 °
- Viewing angle, vertical
- 61 °
- Weight
- 134 g
- Width
- 60 mm
- Number of cameras
- 1
Specific References
- EAN13
- 7331021054035
1/3" RGB CMOS, HDTV 1080p, 2 MP, IR LED, PIR-Sensor, PoE
