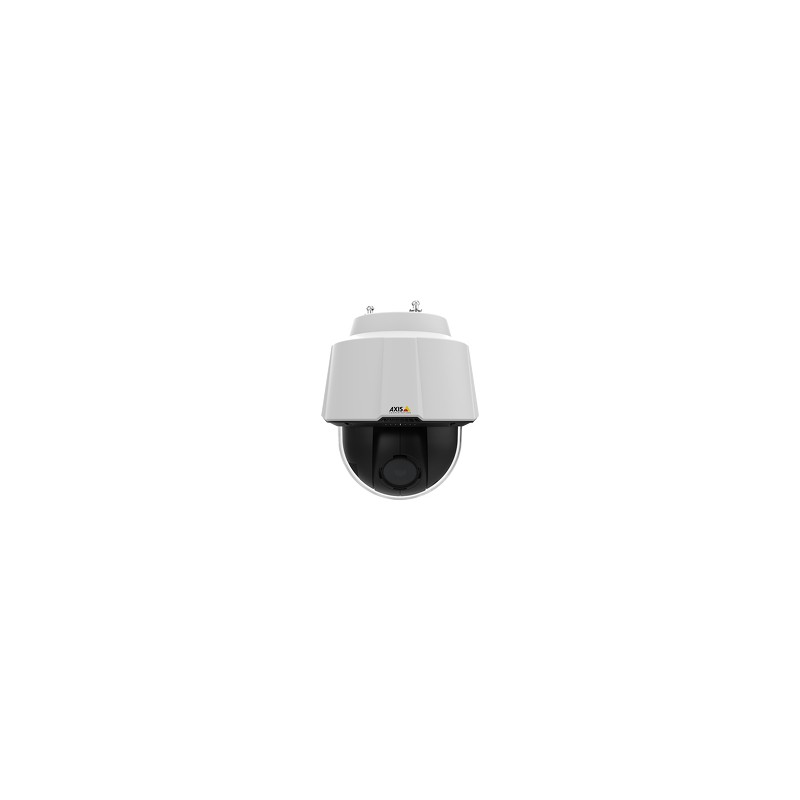

Axis P5624-E MK II 50HZ

1/2.8" CMOS, f:4.3-98.9mm, F1.6-F4.2, PTZ, WDR, H.264, M-JPEG, MPEG4, 23x optical zoom, 12x digital zoom, 1280 x 720, IP66, IK10, PoE, Dome
Out of Stock
Reference: 0931-001
Cost-effective HDTV PTZ dome

AXIS P5624-E Mk II PTZ Dome Network Camera is a cost-effective, outdoor-ready HDTV 720p camera with 23x optical zoom. It enables video surveillance of large indoor and outdoor areas and provides great detail when zooming in. Focus recall means it’s faster and easier for operators to find focus in a predefined area than with regular autofocus. AXIS P5624-E Mk II is ideal for applications such as retail surveillance.



Continuous 360° pan

AXIS P5624-E Mk II features a continuous 360° pan capability, with no mechanical stop, for fast camera repositioning and smooth, continuous tracking of an object.



Superb video in various lighting conditions

AXIS P5624-E Mk II has day/night functionality and good low light performance. It supports Axis’ unique Wide Dynamic Range – Forensic Capture (120 dB), which enables details in both very bright and dark areas of a scene to be visible.



AXIS P5624-E Mk II offers shock detection, which allows the camera to send an alarm when it has been hit.



<>Zipstream

AXIS P5624-E Mk II features Axis' Zipstream technology, which lowers bandwidth and storage requirements by an average of 50% or more while keeping the resolution, frame rate and forensic details. Zipstream automatically adapts to PTZ camera movements.



Video analytics video

The camera’s built-in intelligent video functionalities include video motion detection and Advanced Gatekeeper, which enables the camera to detect an object in a specified area and zoom in on it. Support for AXIS Camera Application Platform allows other video analytics to be downloaded to the camera. Other features include Power over Ethernet Plus (PoE+) for ease of installation with just one network cable for power and network access. A hard ceiling mount and a smoked dome are included with the camera.
Axis
0931-001

Data sheet

Connectivity technology
Wired
Form factor
dome
Frame rate
60 fps
Height
217 mm
Housing material
Aluminium
International Protection (IP) code
IP66
Maximum resolution
1280 x 720 pixels
Minimum illumination
0.01 lx
Mounting type
Ceiling/wall
Operating temperature (T-T)
-30 - 55 °C
Optical sensor size
1/2.8 "
Placement supported
Outdoor
Sensor type
CMOS
Supported network protocols
IPv4/v6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , SFTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH, NT CIP
Video compression formats
H.264,M-JPEG,MPEG4
Viewing angle, horizontal
57.9 °
Viewing angle, vertical
33.9 °
Weight
2500 g

Specific References

EAN13
7331021053274
