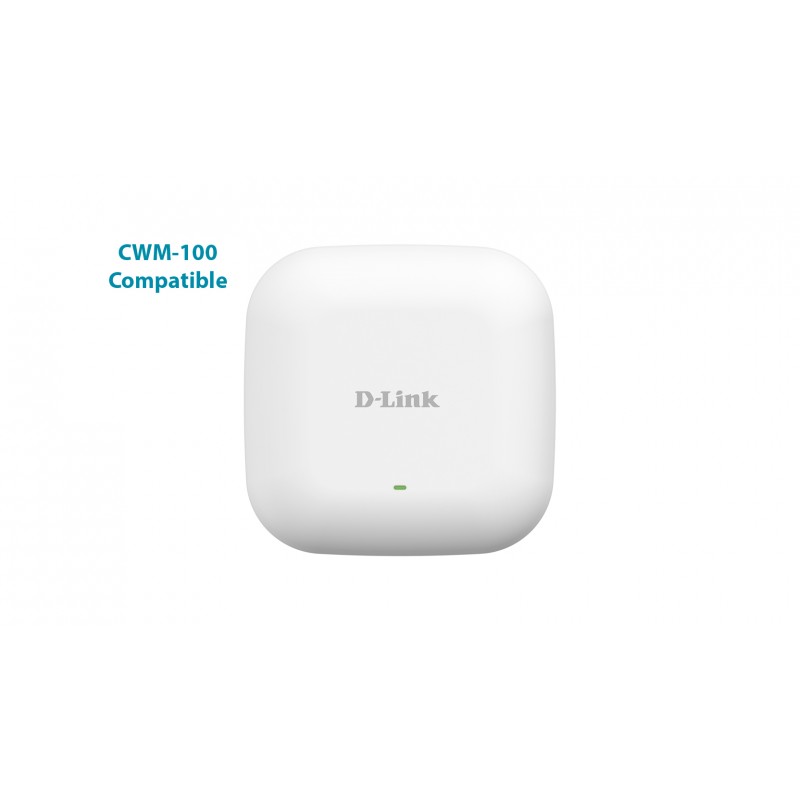

D-Link DAP-2230
D-Link DAP-2230 D-Link DAP-2230 D-Link DAP-2230 D-Link DAP-2230 D-Link DAP-2230 D-Link DAP-2230

D-Link DAP-2230

PoE, 2.4GHz, 2x3dBi, 802.11b/g/n, 300Mb/s, 10/100 Ethernet, WPA/WPA2/WEP, 213.6g

DAP-2230

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Performance without Compromise



The DAP-2230 Wireless N PoE Access Point allows businesses to create a secure and manageable wireless network. Multiple operational modes, network management tools and security features give network administrators more flexible deployment options.



Flexible Deployment



The DAP-2230 has a super compact design, and can be ceiling mounted, wall mounted or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2230 has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.





Green Design



The DAP-2230 has a wireless scheduler feature, which turns off wireless functionality when it isn't needed, saving power.



8 SSIDs Simultaneously



Supports up to 8 SSIDs that can logically divide the access point into several virtual access points all within a single hardware platform.





Free Wireless AP Controller software



D-Link's free Central WiFiManager is a cloud enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.





Scalable, flexible, centralised AP management



Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud, regardless of geography.
CertificationFCC, IC, CE, UL, Wi-Fi® Certified
Depth129 mm
Ethernet LAN (RJ-45) ports1
Height29 mm
Operating temperature (T-T)0 - 40 °C
Weight213.6 g
Width129 mm

DAP-2230.pdf

D-Link DAP-2230 Data Sheet

Download (746.97k)
