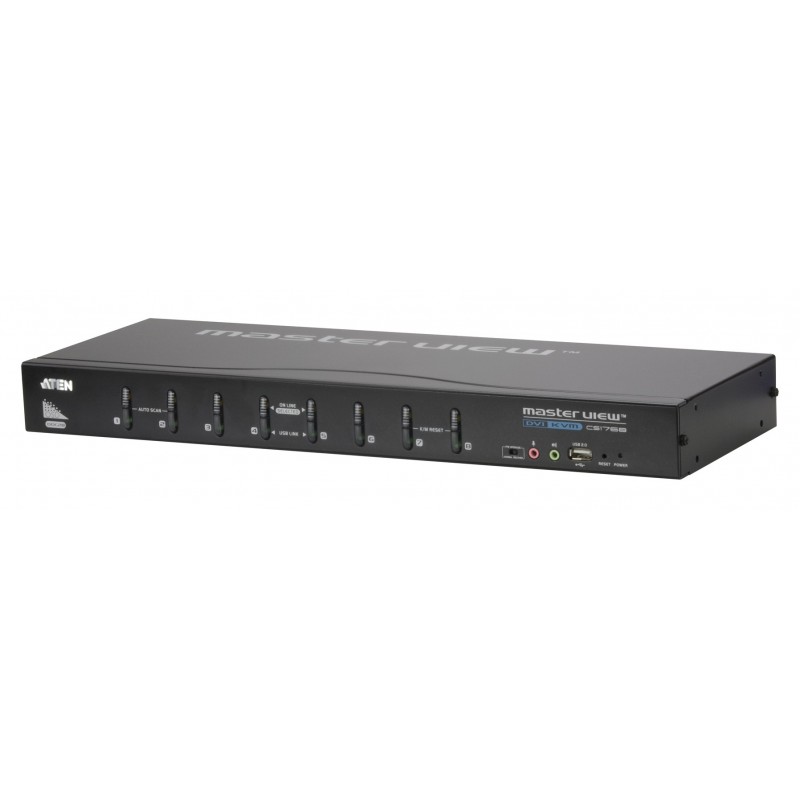

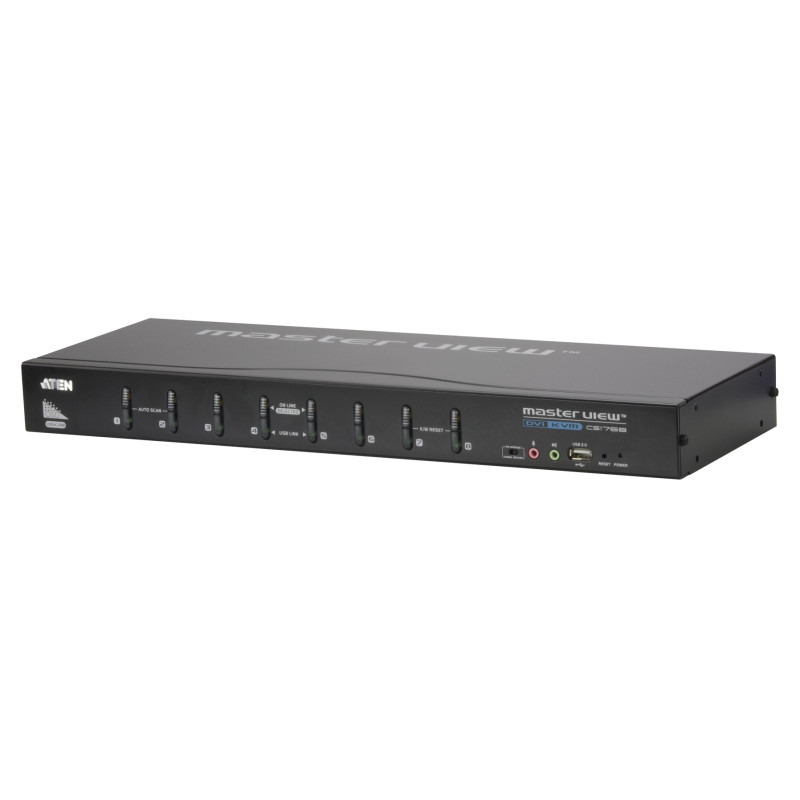

Aten CS1768

8-Port USB DVI KVM Switch with Audio

CS1768

More info

Features



- One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices

- Supports both digital (DVI) and analog (VGA) video – mixed operation Possible

- Cascadable to three levels – control up to 512 computers

- Multiview mode – stack up to four CS1768 units and display video from up to four monitors (dual view / triple view / quad view)

- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)

- OSD Backup/Restore function – enables the administrator to back up the switch´s configuration and user profile information

- 2-port USB 2.0 hub built in

- Fully compliant with the USB 2.0 specification

- Two-level (Administrator/User) password authorization for enhanced security protection

- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French

- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems

- Console audio ports on front panel for easy access

- Multiplatform support – Windows, Linux, Mac, Sun

- Supports widescreen resolutions

- Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B

- Independent switching of KVM and USB focus

- DVI digital and analog monitor support – fully compliant with the DVI specifications

- HDCP compatible

- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Chinese, and Spanish

- Complete keyboard emulation for error-free booting

- Mac/Sun keyboard support and emulation*

- Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional

- Auto Scan Mode for monitoring all computers

- Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously.

- Firmware upgradable



Note: PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers



Package Contents



- 1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit

- 2x 2L-7D02U USB DVI-D KVM Cable Sets

- 1x Firmware Upgrade Cable

- 1x 0AD6-1605-24EG Power Adapter

- 1x Foot Pad Set (4 pcs)

- 1x User Instructions

Features

CertificationTW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217 RoHS
MaterialMetal
