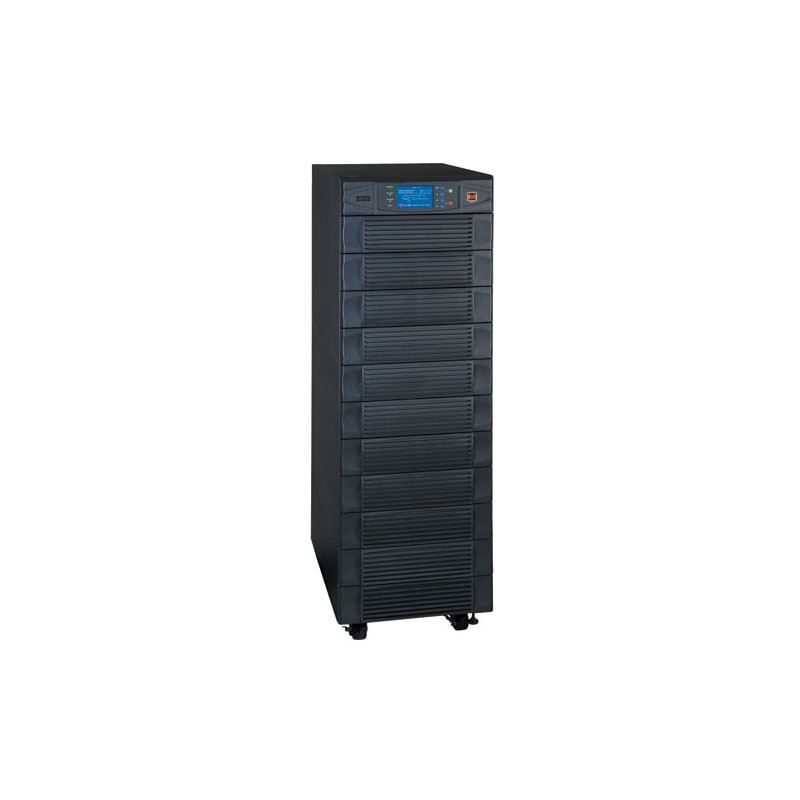

Tripp Lite SmartOnline 120kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS
Tripp Lite SmartOnline 120kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS Tripp Lite SmartOnline 120kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS Tripp Lite SmartOnline 120kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS

Tripp Lite SmartOnline 120kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS

SmartOnline 120kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS

SU120KX2

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Tripp Lite SU120KX2 120kVA SmartOnline Modular 3-Phase Intelligent, True On-Line Double-Conversion UPS System provides 100% system availability with N+1 modular architecture and parallel capability. In N+1 configurations, SU120KX2 provides 6 self-contained, redundant 20kVA power modules that support hot-swappable maintenance while connected equipment remains powered. In parallel applications configured and installed by a Tripp Lite authorized technician, up to 4 SU120KX2 models can be connected to provide fail-safe redundancy (two 120kVA models supporting up to 120kVA) or increased capacity (two 120kVA models supporting up to 240kVA). Large capacity 120,000VA / 96,000W UPS continually converts incoming AC power into filtered DC and resynthesizes output into perfectly regulated continuous sine wave AC output with less than 3% THD. Zero transfer time assures compatibility with all equipment types. High input power factor, advanced IGBT inverter and Digital Signal Processor (DSP) technology produce less than 4% input total harmonic distortion (THDi). With low THDi, generators run cooler and last longer, allowing managers to save installation costs by installing a generator with a capacity equal to the equipment load (1:1 ratio). Up to 97% efficiency option reduces operating costs and BTU output. Hardwire input and output connections support a variety of permanent or PDU power connections. Frequency is 50 or 60 Hz (auto-selectable). SU120KX2 power modules are housed in a single small-footprint tower compartment. Battery runtime can be extended with additional stand-alone hardwired external battery modules. A manual bypass breaker and an automatic bypass function ensure 100% availability of connected equipment by safely passing through AC power if the UPS requires maintenance.

● True On-Line Double-Conversion 120kVA / 120,000VA / 96kW / 96,000 watt SmartOnline Modular 3-Phase Intelligent UPS provides 100% system availability

● Scalable, modular N+1 configurations support hot-swap replacement of any of the six self-contained 20kVA power modules while connected equipment remains powered

● Parallel applications enable the connection of 2, 3 or 4 SU120KX2 models in parallel to enable advanced configurations for fail-safe redundancy, increased capacity and combinations of the two (all parallel installations must be performed by a Tripp Lite authorized technician)

● Full-time sine wave output with less than 3% output THD

● High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology produce low input THD (THDi)

● Less than 4% input THD (THDi) reduces installation costs by allowing 1:1 generator sizing

● Extremely efficient operation (up to 97%) saves energy and reduces BTU output

● Maintains continuous operation with zero transfer time through blackouts, voltage fluctuations and surges

● Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems

● Wide input voltage correction range: 173-300V / 276-477V AC

● Precision +/-1% output voltage regulation

● 4 available battery modules (BP480V400) are housed in a separate, stand-alone hardwired external battery compartment (Battery modules sold separately)

● Front panel combination LCD/LED display includes a real-time event log screen with up to 500 events listed

● Dynamic battery management screen optimizes battery function to lengthen service life and allow cold restart of the UPS

● Serial port enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert

● Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and MODBUSCARD

● Emergency Power Off button turns UPS output OFF and disables Bypass output

● Built-in Emergency Power Off (EPO) dry-contact interface supports remote emergency shutdown in large facilities



● 120kVA / 120,000VA / 96,000W on-line double-conversion 3 phase UPS

● 3 phase 220/380V, 230/400V, 240/415V 4-wire + ground wye input & output

● Scalable, modular N+1 redundant architecture helps assure 100% availability

● Parallel up to 4 UPS systems for redundancy or increased capacity

● IGBT & DSP technology produce <4% input harmonic distiortion (THDi)

● Hot swappable power modules, Expandable runtime



Package Includes



● SU120KX2 UPS System

● Parallel communication cable

● Instruction manual

● Warranty information
Depth975 mm
Form factorTower
Height1697 mm
MaterialMetal
Operating temperature (T-T)0 - 40 °C
Weight379200 g
Width521 mm

SU120KX2.pdf

Tripp Lite SmartOnline 120kVA Modular 3-Phase UPS System, On-line Double-Conversion International UPS Data Sheet

Download (490.63k)
