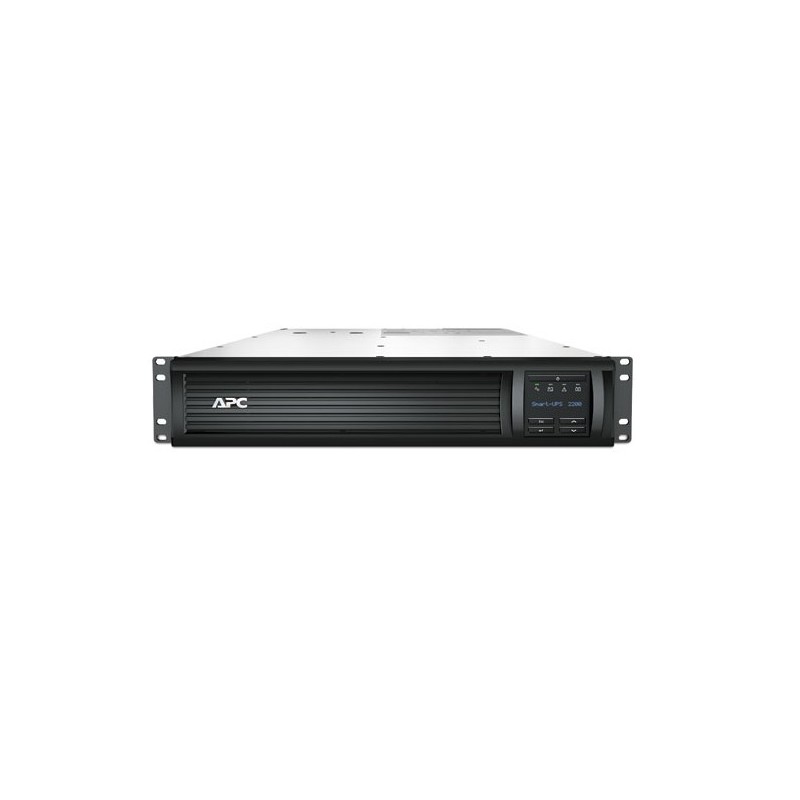

APC Smart-UPS 2200VA
APC Smart-UPS 2200VA APC Smart-UPS 2200VA APC Smart-UPS 2200VA APC Smart-UPS 2200VA APC Smart-UPS 2200VA

APC Smart-UPS 2200VA

230 V, 1.98 KW / 2.2 kVA, 50/60 Hz, RJ-45, SmartSlot, USB, 480 x 683 x 86 mm, 42.22 kg

SMT2200RMI2UNC

Stock Due 05-12-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Cold-start capable

Provides temporary battery power when the utility power is out.



Energy meter

Provides actual kilowatt hours of usage for energy conscious users.



Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.



High online efficiency

Reduces utlility costs, generates less heat.



Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.



Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.



Preinstalled network management card

Provides for remote management and control of the UPS over a network out of the box.



Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.



SmartSlot

Customize UPS capabilities with management cards.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Availability



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).



Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.



Manageability



Network manageable

Provides remote power management of the UPS over the network.



Serial connectivity

Provides management of the UPS via a serial port.



Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.



Disconnected battery notification

Warns when a battery is not available to provide backup power.



LED status indicators

Quickly understand unit and power status with visual indicators.



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Safety



Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.



Marketing Features



Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging.

Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.



Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.



Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.



Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.



Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems



Serviceability



Resettable circuit breakers

Enables a quick recovery from overload events.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.



User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance



Adaptability



Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.



Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
CertificationCE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Depth683 mm
DisplayLCD
Ethernet LAN (RJ-45) ports1
Form factorRackmount
Height86 mm
Operating temperature (T-T)0 - 40 °C
Weight42200 g
Width480 mm
