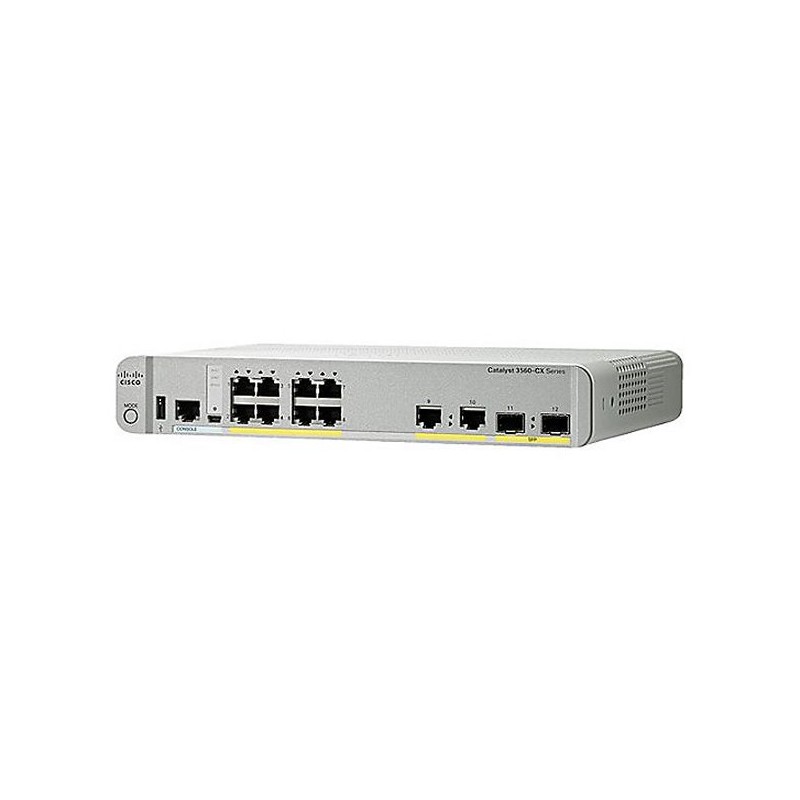

Cisco WS-C3560CX-8PC-S
Cisco WS-C3560CX-8PC-S Cisco WS-C3560CX-8PC-S

Cisco WS-C3560CX-8PC-S

32 Gbps, 8 x Gigabit Ethernet, 8 PoE+, 240 W, 1G SFP, 17.9 mpps, 44.4 x 269 x 238 mm, 2.27 kg

WS-C3560CX-8PC-S

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Cisco® Catalyst® Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.



The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) and Multigigabit Ethernet (mGig) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.



With their quiet, fanless design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.
Depth238 mm
Fiber typeMulti-mode
Height44.4 mm
Operating temperature (T-T)-5 - 45 °C
SafetyUL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Weight2270 g
Width269 mm

WS-C3560CX-8PC-S.pdf

Cisco WS-C3560CX-8PC-S Data Sheet

Download (740.41k)
