StarTech.com PEX10GSFP4I

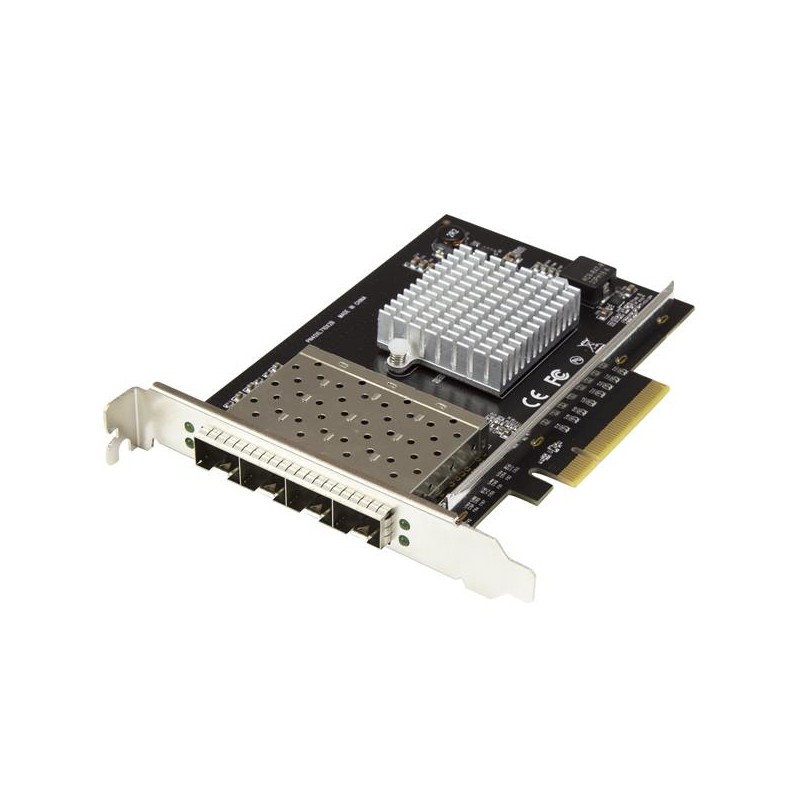

StarTech.com Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip
In Stock
Reference: PEX10GSFP4I
This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.



Add redundant connections in zero-downtime environments

With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.



Increase your network speed

This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.



Add scalable network connections to your server or workstation

The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.



The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.



Enhance your network capabilities

The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.



The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
StarTech.com
PEX10GSFP4I

Data sheet

Certification
CE, FCC
Chipset
Intel XL710
Colour of product
Black
Connectivity technology
Wired
Data transfer rate (max)
20000 Mbit/s
Depth
139 mm
Fiber optic connector
SFP+
Flow control support
Yes
Full duplex
Yes
Height
120 mm
Host interface
PCI-E
Interface
fiber
Internal
Yes
LED indicators
Activity,Link
Linux operating systems supported
Yes
Networking standards
IEEE 802.1Q,IEEE 802.1ad,IEEE 802.3ae,IEEE 802.3x
Operating relative humidity (H-H)
20 - 80 %
Operating temperature (T-T)
5 - 50 °C
Package weight
135 g
Quick start guide
Yes
RoHS compliance
Yes
Source data-sheet
Icecat.biz
Storage temperature (T-T)
-20 - 60 °C
Weight
129 g
Width
15 mm
Windows operating systems supported
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Wind

Specific References

EAN13
0065030867740

PEX10GSFP4I.pdf

StarTech.com PEX10GSFP4I Data Sheet

Download (175.76KB)
