Axis P1265
1/3” RGB CMOS, 3.7mm, F2.5, 1080p, H.264, M-JPEG, 25/30 fps, 512 MB RAM, 256 MB, microSD/microSDHC/microSDXC

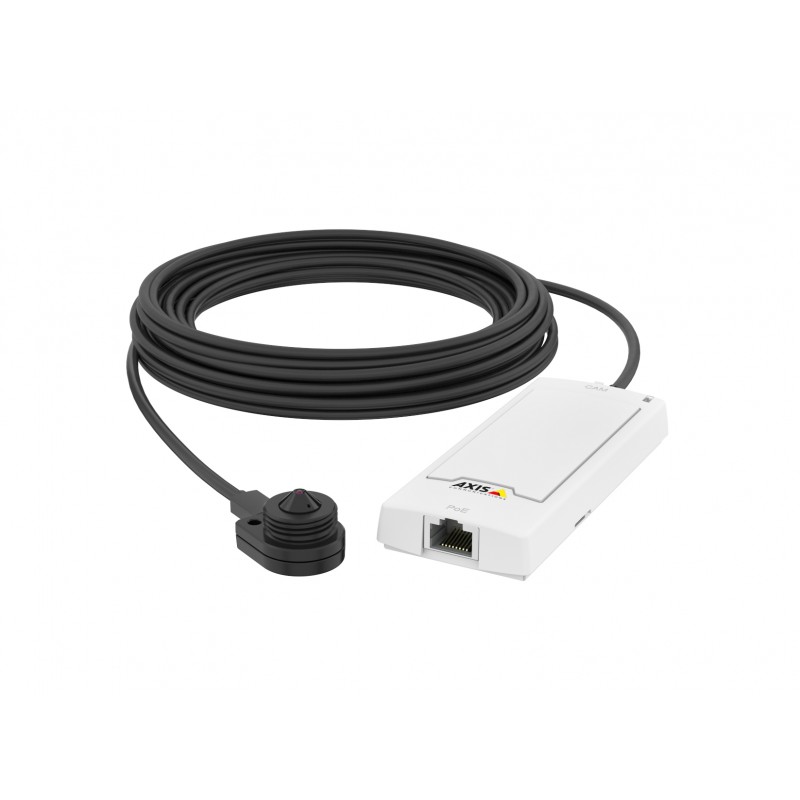

AXIS P1265 Network Camera is a cost-effective complete modular pinhole camera with HDTV 1080p resolution, ideal for discreet indoor eye-level surveillance. It can be installed in tight places or flush-mounted in a wall, ceiling, or metal panel with only a small pinhole lens visible, suitable in, for example, ATMs or vending machines. Equipped with WDR – Forensic Capture, enables the camera to handle scenes with strong variations in light. AXIS P1265 comes with a mounting bracket and an 8 meter (26 feet) detachable cable.
0927-001
Data sheet
- Bluetooth
- N
- Built-in hard drive
- N
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/32500 - 1/25 (50 Hz), 1/32500 - 1/30 (60 Hz) s
- Card reader integrated
- Y
- Certification
- 55032 B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B B, VCCI B, RCM AS/NZS CISPR 32, ICES-003 B, KCC KN32 B, KN35, IEC/EN/UL 62368-1, EN 50581, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27
- Colour of product
- White
- Compatible memory cards
- MicroSD (TransFlash),MicroSDHC,MicroSDXC
- Connectivity technology
- Wired
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Y
- Ethernet LAN (RJ-45) ports
- 1
- Fixed focal length
- 3.7 mm
- Housing material
- Aluminium,Plastic,Steel
- HTTPS encryption
- Y
- Interface
- RJ-45
- Internal memory
- 512 MB
- IP address filtering
- Y
- Maximum resolution
- 1920 x 1080 pixels
- Minimum illumination
- 0.27 lx
- Networking standards
- IEEE 802.3af,IEEE 802.3at
- Operating temperature (T-T)
- -20 - 50 °C
- Optical sensor size
- 1/3 "
- Password protection type
- User
- Power consumption (typical)
- 9W
- Power source type
- PoE
- Progressive scan
- Y
- Quality of Service (QoS) support
- Y
- Security algorithms
- HTTPS,SNMP,SNMPv3,SSH,SSL/TLS
- Sensor type
- CMOS
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -40 - 65 °C
- Supported network protocols
- IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
- Supported video modes
- 1080p
- Type
- IP security camera
- User guide
- Y
- Video compression formats
- H.264,M-JPEG
- Video motion detection
- Y
- Viewing angle, horizontal
- 91 °
- Viewing angle, vertical
- 45 °
- Web-based management
- Y
- Wide Dynamic Range (WDR)
- Y
- Number of cameras
- 1
- Video streaming
- Y
Specific References
- EAN13
- 7331021052833
