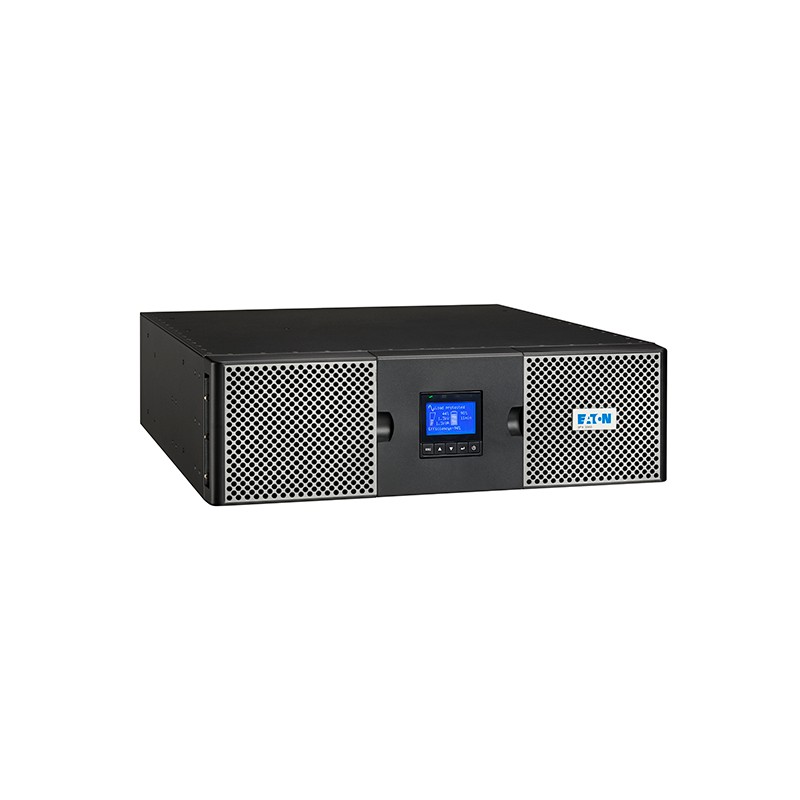

Eaton 9PX3000IRTM
3000VA, 3000W, C20 In, 8 x C13 & 2 x C19 Out
The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.
9PX3000IRTM
Data sheet
- AC outlet types
- C13 coupler,C19 coupler
- AC outlets quantity
- 10 AC outlet(s)
- Certification
- IEC/EN 62040-1, UL 1778, CSA 22.2\nIEC/EN 62040 -2, FCC Class B, CISPR22 Class B\nDNV-GL / CE /CB (TUV) / cULus / EAC /RCM / KC
- Colour of product
- Grey
- Depth
- 485 mm
- Display
- LCD
- Efficiency
- 98 %
- Energy Star certified
- Y
- Form factor
- Rackmount/Tower
- Height
- 130 mm
- Input operation voltage (max)
- 276 V
- Input operation voltage (min)
- 176 V
- LED indicators
- Y
- Noise level
- 97.4 dB
- Operating temperature (T-T)
- 0 - 40 °C
- Output operation voltage (max)
- 240 V
- Output operation voltage (min)
- 200 V
- Output power
- 3000 W
- Power factor
- 1
- Power plug
- C20 coupler
- Power supply input frequency
- 40/70 Hz
- Rack capacity
- 3U
- RS-232 ports
- 1
- Source data-sheet
- Icecat.biz
- USB port
- Y
- Weight
- 27400 g
- Width
- 440 mm
Specific References
- EAN13
- 0743172081667
