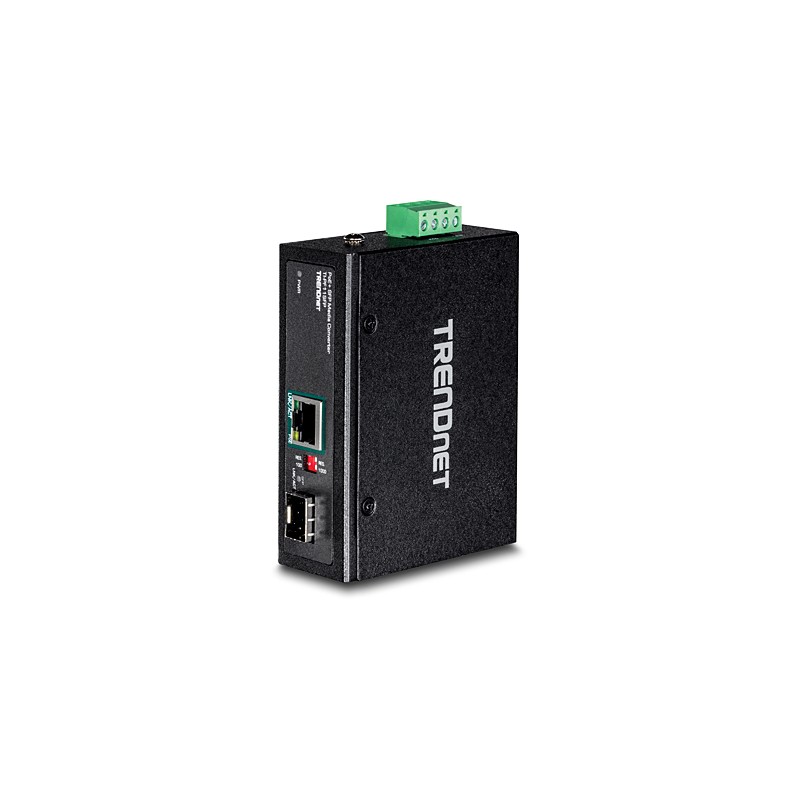

Trendnet TI-PF11SFP

Industrial SFP to Gigabit PoE+ Media Converter
Out of Stock
Reference: TI-PF11SFP
TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.



Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.



PoE+ Output

Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.



Extreme Environments

Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.



Network Ports

1 x Gigabit PoE+ Ethernet port and 1 x SFP slot



DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware



Switching Capacity

2Gbps switching capacity



Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)



Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance



Extreme Temperatures

Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)



Electromagnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards



Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)



Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)



Grounding Point

Grounding point protects equipment from external electrical surges
Trendnet
TI-PF11SFP

Data sheet

Certification
CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN60950-1
Connectivity technology
Wired
Depth
81 mm
Ethernet LAN (RJ-45) ports
1
Height
104 mm
Housing material
Aluminium
International Protection (IP) code
IP30
Operating temperature (T-T)
-40 - 75 °C
Weight
154 g
Width
32 mm

Download

TI-PF11SFP.pdf

Trendnet TI-PF11SFP Data Sheet

Download (1.32MB)
