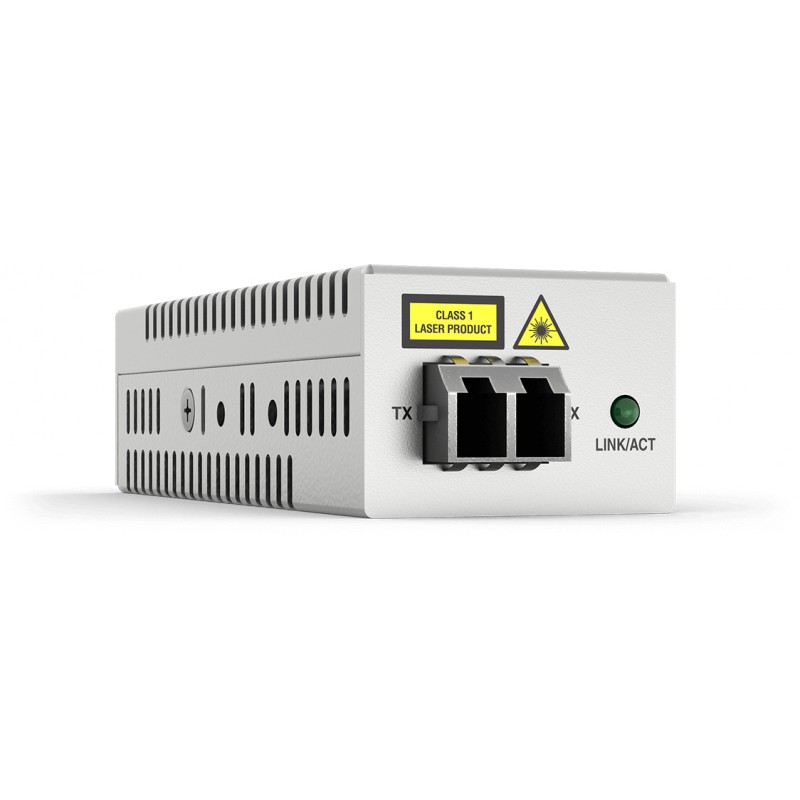

Allied Telesis AT-DMC1000/LC-30
1000T to 1000SX/LC Gigabit desktop USB-powered media converter, Multi-mode LC fiber connector
This desktop media converter features 1000T to 1000SX conversion with LC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Data sheet
- Auto MDI/MDI-X
- Y
- Certification
- FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
- Colour of product
- Grey
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 1000Base-T
- Data transfer rate (max)
- 1000 Mbit/s
- DC-in jack
- Y
- Depth
- 91.4 mm
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Fiber ethernet cabling technology
- 1000BASE-SX
- Fiber optic connector
- LC
- Height
- 21.6 mm
- Input voltage
- 5 V
- Internal
- N
- LED indicators
- Y
- Maximum transfer distance
- 550 m
- Networking standards
- IEEE 802.1Q
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- 0 - 40 °C
- Reset button
- Y
- RoHS compliance
- Y
- Safety
- U L60950-1, EN 60950-1
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -15 - 65 °C
- Wavelength
- 850 nm
- Weight
- 113.4 g
- Width
- 31.8 mm
1000T to 1000SX/LC Gigabit desktop USB-powered media converter, Multi-mode LC fiber connector
