Axis XP40-Q1765 INMETRO -60C
IP, CMOS 1/2.9", f=4.7–84.6 mm, 1920x1080, PTZ, WDR, Day/Night, 256 MB RAM, 128 MB Flash
Combining technologies

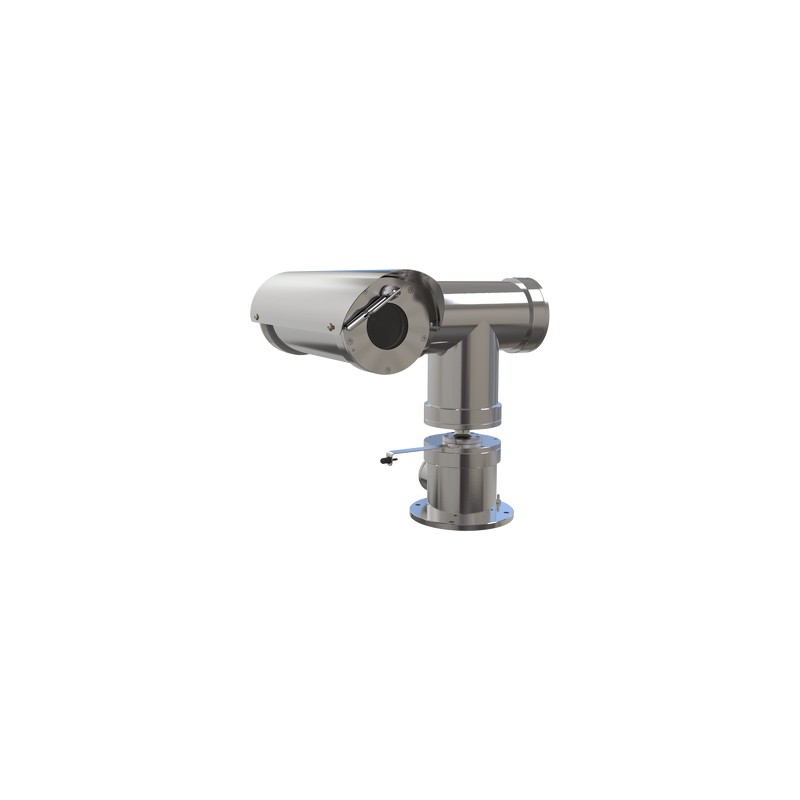

XP40-Q1765 Explosion Protected PTZ Network Camera is an AXIS Q1765-LE Network Camera (excl. IR LEDs and SD card, incl. wiper and support for washer, as well as pan/tilt) mounted inside an explosion protected stainless steel PTZ housing. The camera provides superb image quality and color fidelity, and offers Full HDTV 1080p resolution at 25/30 fps. With 18x optical zoom and autofocus, the camera is ideally suited for remote monitoring situations common in hazardous areas.
The camera features an electro-polished 316L stainless steel housing certified for hazardous areas according to, among others, ATEX and IECEx. The PTZ camera delivers 360º endless rotation with up to 45º/s pan speed and ±90° tilt with up to 24º/s tilt speed.
Critical infrastructure
XP40-Q1765 is ideally suited for large area video surveillance monitoring in hazardous areas in critical infrastructure such as onshore, offshore and marine environments in the oil and gas industry. In addition, typical application areas are also dusty environments in other industries, for example, paper and textile industries, and grain handling.
Wide temperature range
The outdoor-ready XP40-Q1765 comes in two product versions, depending on the required temperature range: either up to +60 ºC (+140 ºF) or down to -60 ºC (-76 ºF). A removable weather shield is supplied with the camera.
Flexible integration and remote accessibility
XP40-Q1765 provides a high level of flexible integration possibilities with other equipment, such as access control, illumination and audio. It offers remote accessibility, using any existing IP-based networks. XP40-Q1765 for hazardous areas is a complement to Axis’ wide range of network cameras that can be used in safe areas.
XP40-Q1765 Explosion Protected PTZ Network Camera is an AXIS Q1765-LE Network Camera (excl. IR LEDs and SD card, incl. wiper and support for washer, as well as pan/tilt) mounted inside an explosion protected stainless steel PTZ housing. The camera provides superb image quality and color fidelity, and offers Full HDTV 1080p resolution at 25/30 fps. With 18x optical zoom and autofocus, the camera is ideally suited for remote monitoring situations common in hazardous areas.
The camera features an electro-polished 316L stainless steel housing certified for hazardous areas according to, among others, ATEX and IECEx. The PTZ camera delivers 360º endless rotation with up to 45º/s pan speed and ±90° tilt with up to 24º/s tilt speed.
Critical infrastructure
XP40-Q1765 is ideally suited for large area video surveillance monitoring in hazardous areas in critical infrastructure such as onshore, offshore and marine environments in the oil and gas industry. In addition, typical application areas are also dusty environments in other industries, for example, paper and textile industries, and grain handling.
Wide temperature range
The outdoor-ready XP40-Q1765 comes in two product versions, depending on the required temperature range: either up to +60 ºC (+140 ºF) or down to -60 ºC (-76 ºF). A removable weather shield is supplied with the camera.
Flexible integration and remote accessibility
XP40-Q1765 provides a high level of flexible integration possibilities with other equipment, such as access control, illumination and audio. It offers remote accessibility, using any existing IP-based networks. XP40-Q1765 for hazardous areas is a complement to Axis’ wide range of network cameras that can be used in safe areas.
0836-031
Data sheet
- Certification
- EN 55022 Class A, EN 61000-3-2, EN 61000-3-3,\nEN 55024, EN 61000-6-1, EN 61000-6-2,\nFCC Part 15 Subpart B Class A, ICES-003 Class A,\nC-tick AS/NZS CISPR 22 Class A, IEC/EN 60950-1,\nIEC/EN 60950-22, EN 50121-4, IEC/EN 60529 IP66,\nNEMA 250 Type 4x, IEC
- Connectivity technology
- Wired
- Day/night mode
- Y
- Depth
- 512 mm
- Ethernet LAN
- Y
- Form factor
- bullet
- Height
- 480 mm
- Housing material
- Stainless steel
- HTTPS encryption
- Y
- International Protection (IP) code
- IP67
- IP address filtering
- Y
- Maximum resolution
- 1920 x 1080 pixels
- Minimum illumination
- 0.04 lx
- Mounting type
- Ceiling/wall
- Operating temperature (T-T)
- -60 - 40 °C
- Optical sensor size
- 1/2.9 "
- Placement supported
- Outdoor
- Power source type
- AC
- Sensor type
- CMOS
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMP v1/v2c/v3 (MIB-II),DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP,DHCP, ARP, SOCKS, SSH
- Video compression formats
- H.264,M-JPEG,MPEG4
- Viewing angle, horizontal
- 59 °
- Viewing angle, vertical
- 35 °
- Weight
- 50000 g
- Wide Dynamic Range (WDR)
- Y
- Width
- 475 mm
- Number of cameras
- 1
IP, CMOS 1/2.9", f=4.7–84.6 mm, 1920x1080, PTZ, WDR, Day/Night, 256 MB RAM, 128 MB Flash
