Axis P1290
4 mm, F1.2, H.264, 208x156, 8.3 fps, PoE, 10BASE-T/100BASE-TX RJ-45, RJ-12, microSD, 16.5x46x109 mm

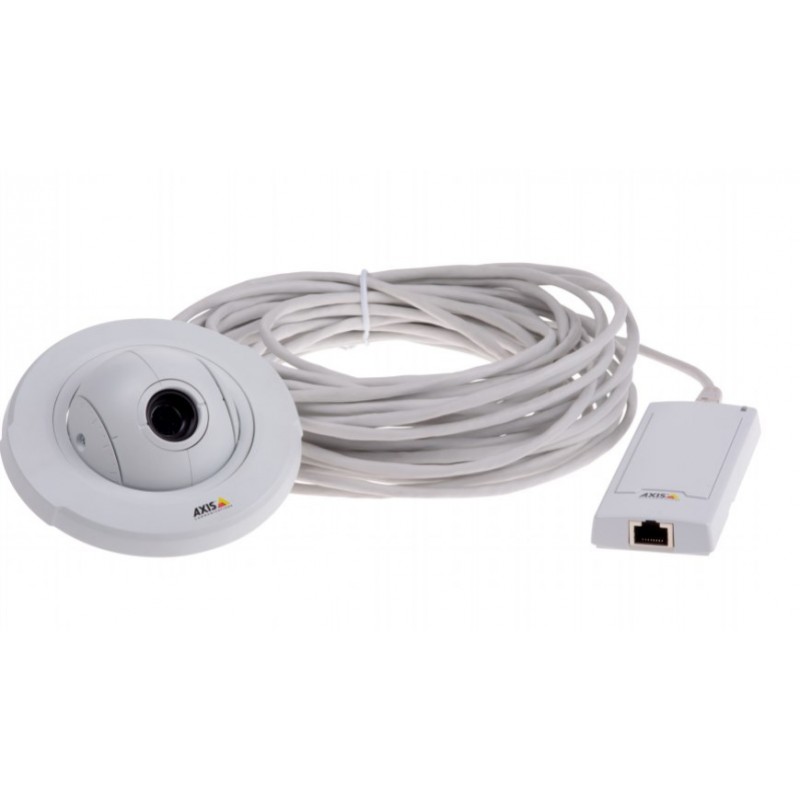

AXIS P1290 is a cost-effective indoor thermal camera, with a resolution of 208x156 and a field of view of 35 degrees. Thermal technology ensures a reliable detection with low rate of false alarms. The camera, protected in a fixed dome enclosure, can be used as a sensor for surveillance in retails and residential, without compromising peoples’ integrity. AXIS P1290 has built-in analytics and support for AXIS Camera Application Platform, which enables the usage of a broad range of third-party applications.
- Reliable and budget-friendly detection
- Thermal technology for low rate of false alarm
- Functional and discreet fixed dome design
- For indoor use
- Reliable and budget-friendly detection
- Thermal technology for low rate of false alarm
- Functional and discreet fixed dome design
- For indoor use
01168-001
Data sheet
- Bluetooth
- N
- Certification
- EN 55032 B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B B, ICES-003 B, VCCI B, RCM AS/NZS CISPR 23 B, IEC/EN/UL 62368-1, EN 50581,\nEN 50121-4, IEC 62236-4, EAC\nIEC 60068-2-1, IEC 60068-2-2, IEC 60068–2–6, IEC 60068-2-14, IEC 60068–2–27, IEC 6
- Connectivity technology
- Wired
- Depth
- 109 mm
- Ethernet LAN
- Y
- Form factor
- dome
- Frame rate
- 8.3 fps
- Height
- 16.5 mm
- Housing material
- Polycarbonate
- IP address filtering
- Y
- Maximum resolution
- 208 x 156 pixels
- Operating temperature (T-T)
- -20 - 50 °C
- Password protection
- Y
- Placement supported
- Indoor
- Power source type
- PoE
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
- Video compression formats
- AVC,H.264,M-JPEG,MPEG4
- Viewing angle, horizontal
- 35.4 °
- Viewing angle, vertical
- 28 °
- Weight
- 72 g
- Wi-Fi
- No
- Width
- 46 mm
- Number of cameras
- 1
Specific References
- EAN13
- 7331021061286
4 mm, F1.2, H.264, 208x156, 8.3 fps, PoE, 10BASE-T/100BASE-TX RJ-45, RJ-12, microSD, 16.5x46x109 mm
