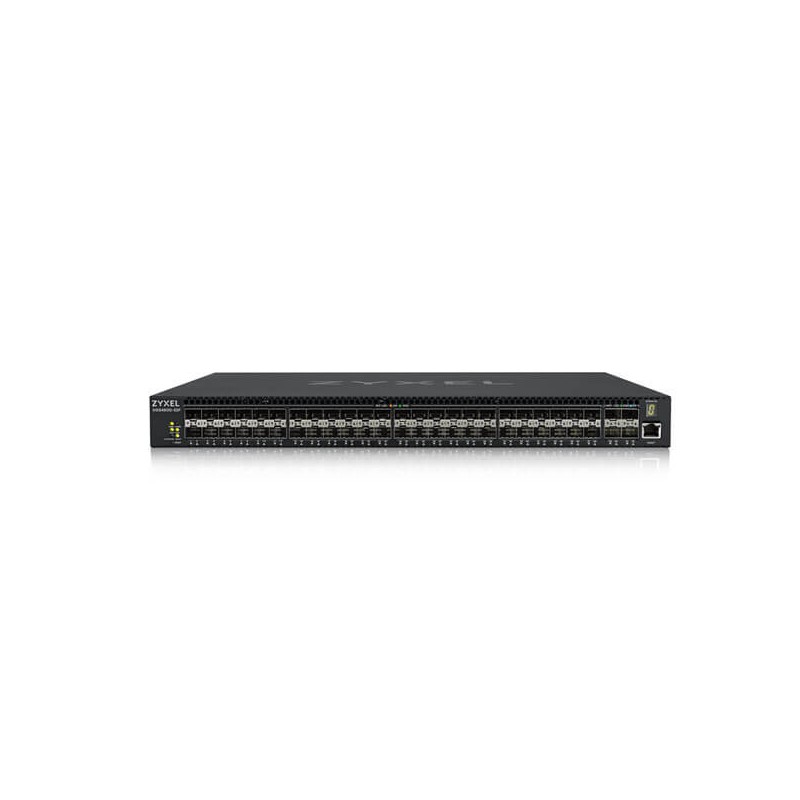

ZyXEL XGS4600-52F
XGS4600-52F - 48-port GbE L3 Managed Fiber Switch with 4 SFP+ Uplink
Stylish Outlook
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
Choose a right L3 switch for your network
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600-32/32F allows creating a physical stack through one or two 10-Gigabit SFP+ slots. XGS4600 series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.
High Resiliency
The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
Choose a right L3 switch for your network
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600-32/32F allows creating a physical stack through one or two 10-Gigabit SFP+ slots. XGS4600 series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.
High Resiliency
The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Data sheet
- 10G support
- Yes
- AC input frequency
- 50 / 60 Hz
- AC input voltage
- 100 - 240 V
- Colour of product
- Black
- Depth
- 360 mm
- DHCP server
- Y
- Flash memory
- 96 MB
- Heat dissipation
- 252.68 BTU/h
- Height
- 44 mm
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- LED indicators
- Y
- MAC address filtering
- Y
- MAC address table
- 32000 entries
- Mean time between failures (MTBF)
- 815860 h
- Networking standards
- IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
- Noise level
- 42.6 dB
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating temperature (T-T)
- 0 - 50 °C
- Package height
- 107 mm
- Package weight
- 6600 g
- Package width
- 616 mm
- Security algorithms
- SSH,SSL/TLS
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 10 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Switch layer
- L3
- Switching capacity
- 176 Gbit/s
- Web-based management
- Y
- Weight
- 4970 g
- Width
- 993 mm
