HomeActive EquipmentSwitchesCisco IE-2000-16TC-G-X

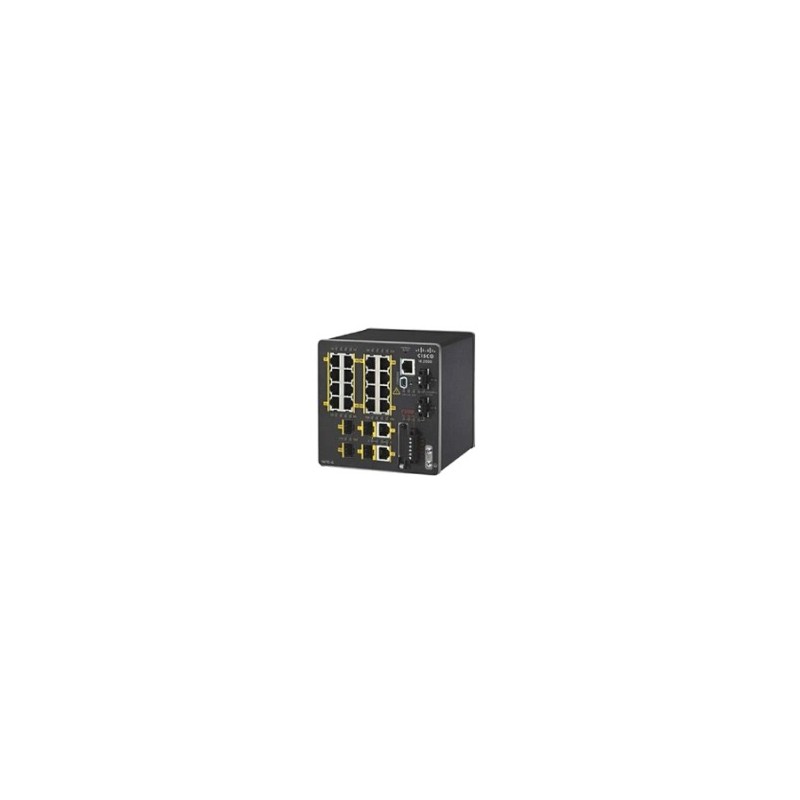

Cisco IE-2000-16TC-G-X
Cisco IE-2000-16TC-G-X Cisco IE-2000-16TC-G-X

Cisco IE-2000-16TC-G-X

16x 10/100Base-T Ethernet, 2x GE Combo, 2x SFP, LAN Base, IEEE 1588, Conformal Coating

IE-2000-16TC-G-X

Stock Due 06-10-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.



Cisco IE 2000 Series are designed for low cost, low ports, and small sizes:

- 4, 8, or 16 10/100Base-T Ethernet ports fixed configurations with compact form factor

- 2x Gigabit Combo ports, SFP (100MB and 1G) or RJ45 uplink

- Dual-input DC power supply, alarm relays, DIN rail mount

- Conformal coating available

- Swappable SD flash card (for configuration storage), mini-USB connector, and RS-232 console port

- Industrial environmental compliance and certifications

- Industrial partner applications: EtherNet/IP and PROFINET

- Primary Applications and Features

- Easy deployment: Zero-touch discovery using DHCP, express setup, fast bootup time (60 sec) to help migrating to Ethernet environment without resistance

- Security: Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users

- Resiliency: Flex links for fast recovery, Cisco REP protocol for fast convergence

- Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA and CiscoWorks LAN Management Solution (LMS)

- Industrial automation protocols: Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments
10G supportNo
CertificationFCC, IEC/EN 55022A, VCCI, AS/NZS CISPR 22, CISPR 11, CISPR 22, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-64, EN 61373, UL/CSA, CE, AS/NZ RCM, BSMI, KCC, ANATEL, RoHS
Depth114.6 mm
Height127 mm
Operating temperature (T-T)-40 - 70 °C
SafetyUL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, CB IEC 60950-1, NOM NOM-019-SCF1
Weight1970 g
Width129.54 mm

IE-2000-16TC-G-X.pdf

Cisco IE-2000-16TC-G-X Data Sheet

Download (184.52k)
