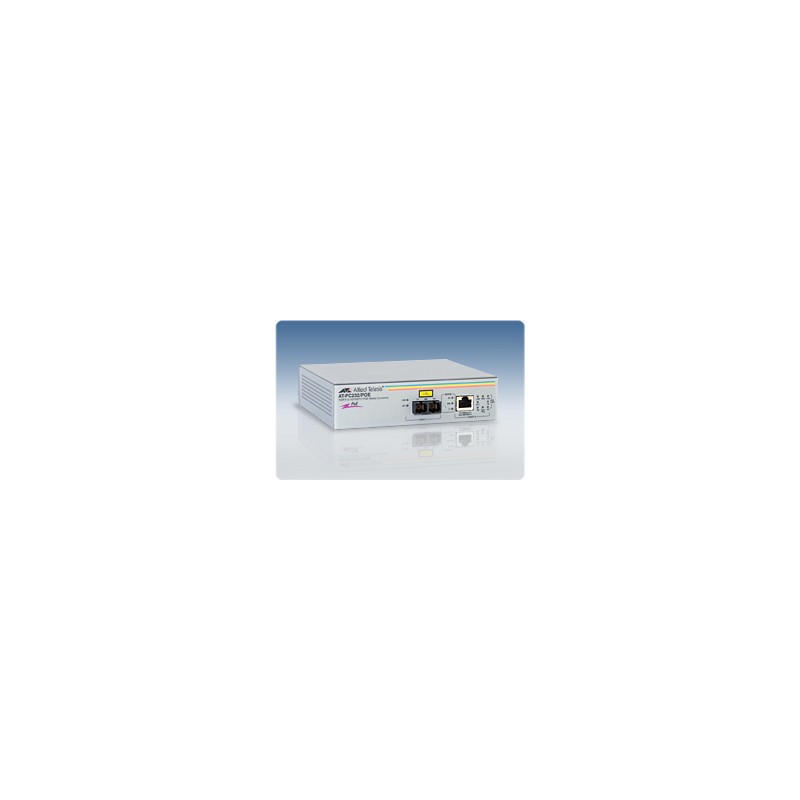

Allied Telesis AT-PC232/POE
10/100TX POE to 100FX (SC) standalone Media Converter
Our media converters allow you to connect disparate cable types in your network. Media conversion offers you the ability to: » Extend network distances by adding fiber only where it is needed » Add new devices without replacing costly cable » Keep pace with changing technology » Integrate high-bandwidth devices into the network » Full 15.4W POE support.
Data sheet
- Cabling technology
- 10/100TX, 100FX
- Certification
- FCC Class B, EN55022 Class B, C-Tick, CE
- Compliance industry standards
- IEEE 802.3af Mode A
- Connectivity technology
- Wired
- Connector(s)
- SC
- Data transfer rate (max)
- 100 Mbit/s
- Dimensions (WxDxH)
- 155 x 131 x 40 mm
- Fiber type
- 50/125, 62.5/125 µm
- Full duplex
- Y
- Operating temperature (T-T)
- 0 - 40 °C
- Packet transfer speed
- 14880/148800 pps
- Power consumption (typical)
- 9W
- Power requirements
- 100-120/220-240V AC, 50/60Hz
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -25 - 70 °C
- Wavelength
- 1310 nm
- Weight
- 748 g
10/100TX POE to 100FX (SC) standalone Media Converter
